B82144B2153K000 _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	B82144B2153K000
Manufacturer	TDK EPCOS
Other Part Numbers	495-6753-2-ND 495-6753-1-ND 495-6753-6 495-6753-1 495-6753-2 495-6753-6INACTIVE B82144B2153K 495-6753-6-ND
Description	FIXED IND 15UH 2.3A 140 MOHM TH

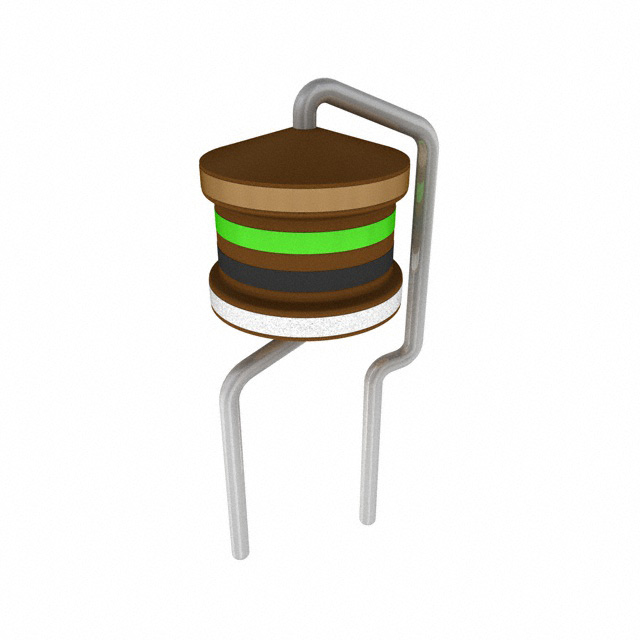

Detailed Description	15 µH Unshielded Drum Core, Wirewound Inductor 2.3 A 140mOhm Max Radial, Vertical Cylinder
Manufacturer Standard Lead Time	9 weeks

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		TDK EPCOS
Series		LBC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±10%
Package / Case		Radial, Vertical Cylinder
Size / Dimension		0.256" Dia (6.50mm)
Mounting Type		Through Hole
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		140mOhm Max
Q @ Freq		50 @ 252kHz
Frequency - Self Resonant		13MHz
Current - Saturation (Isat)		2.4A
Material - Core		Ferrite
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.551" (14.00mm)
Inductance		15 µH
Current Rating (Amps)		2.3 A

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

Can ship immediately.
