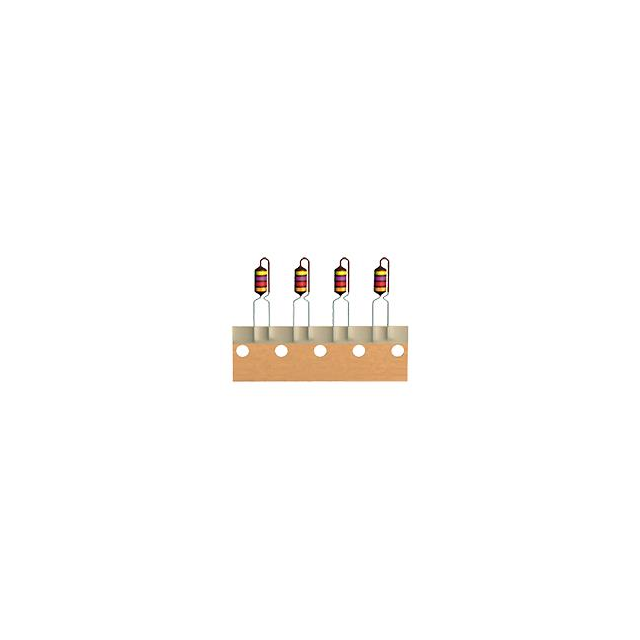

B78148S1392K000

Part Number
B78148S1392K000
Manufacturer TDK EPCOS
Other Part Numbers
B78148S1392K000-ND
B78148S1392K
B78148S1392K-ND
Description FIXED IND 3.9UH 850MA 310MOHM TH
Detailed Description 3.9 µH Unshielded Drum Core, Wirewound Inductor 850 mA 310mOhm Max Radial
Manufacturer Standard Lead Time 9 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer TDK EPCOS
Series
BC
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±10%
Package / Case Radial
Size / Dimension 0.157" Dia x 0.362" L (4.00mm x 9.20mm)
Mounting Type Through Hole
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 310mOhm Max
Q @ Freq 60 @ 7.96MHz
Frequency - Self Resonant 105MHz
Material - Core Ferrite
Inductance Frequency - Test 7.96 MHz
Inductance 3.9 µH
Current Rating (Amps) 850 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets B78148S1392K000
Datasheets TDK Electronics RoHS & REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Affected
RoHS Status ROHS3 Compliant
