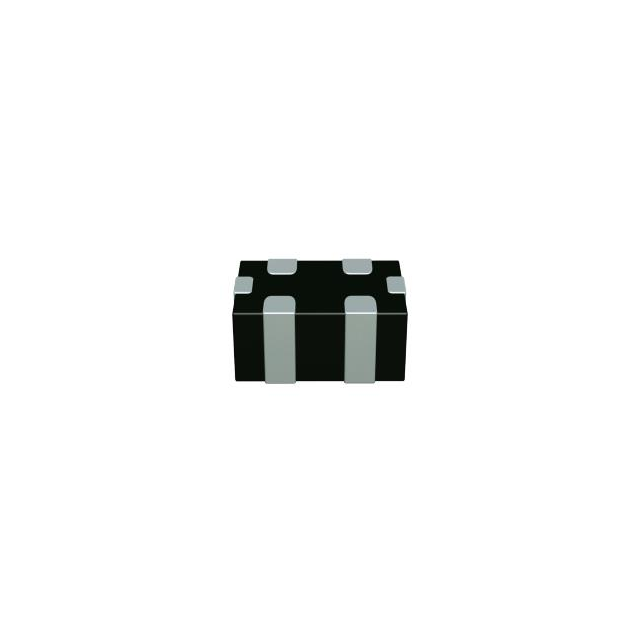

B72862F1050S160 _ EMI/RFI Filters (LC, RC Networks)_Filters

Part Number	B72862F1050S160
Manufacturer	TDK EPCOS
Other Part Numbers	495-B72862F1050S160TR-ND 495-B72862F1050S160CT-ND 495-B72862F1050S160DKR-ND B72862F1050S160-ND 495-B72862F1050S160CT 495-B72862F1050S160TR CA04F2FT5AUD010G 495-B72862F1050S160DKR
Description	FILTER LC 270PF 10MHZ ESD SMD
Detailed Description	LC EMI Filter 4th Order Low Pass 2 Channel C = 270pF 1 A 0504 (1410 Metric), Array, 6 PC Pad
Manufacturer Standard Lead Time	14 weeks

Category		Filters EMI/RFI Filters (LC, RC Networks)
Manufacturer		TDK EPCOS
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		0504 (1410 Metric), Array, 6 PC Pad
Size / Dimension		0.054" L x 0.039" W (1.37mm x 1.00mm)
Mounting Type		Surface Mount
Type		Low Pass
Operating Temperature		-40°C ~ 85°C
Values		C = 270pF
Height		0.026" (0.65mm)
Attenuation Value		60dB @ 900MHz
Filter Order		4th
Applications		Audio
Technology		LC
Center / Cutoff Frequency		10MHz (Cutoff)
Resistance - Channel (Ohms)		0.2
ESD Protection		Yes
Number of Channels		2
Current		1 A

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
