B66506G0000X197

B66506G0000X197

Part Number	B66506G0000X197
Manufacturer	TDK EPCOS
Other Part Numbers	495-75547-ND 495-75547 B66506GX197-ND B66506GX197 B66506G X197

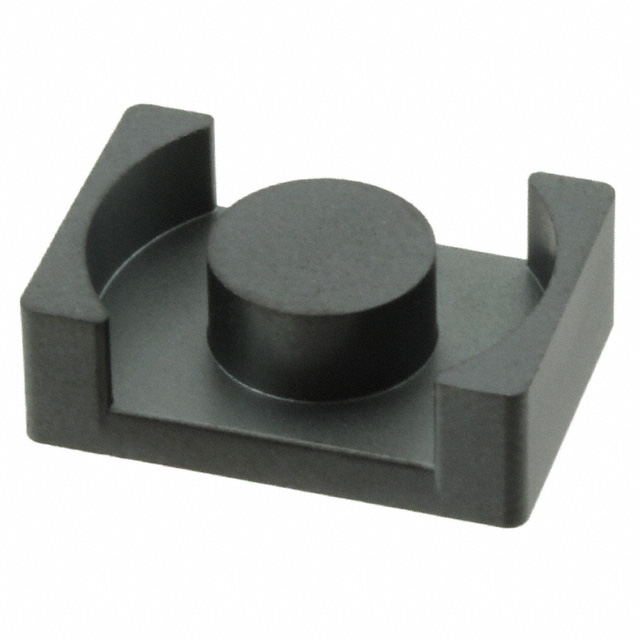

Description	FERRITE CORE EQ N97 1PC
Detailed Description	Uncoated N97 Ferrite Core EQ Type 1.181" (30.00mm) Length 0.787" (20.00mm) Width Diameter 0.315" (8.00mm) Height
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		Magnetics - Transformer, Inductor Components Ferrite Cores
Manufacturer		TDK EPCOS
Series		EQ30/8/20
Packaging		Box
Part Status		Active
Material		N97
Length		1.181" (30.00mm)
Width		0.787" (20.00mm)
Height		0.315" (8.00mm)
Core Type		EQ
Supplier Device Package		EQ 30 x 8
Finish		Uncoated
Gap		Ungapped

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.90.9630
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 412

Can ship immediately.
