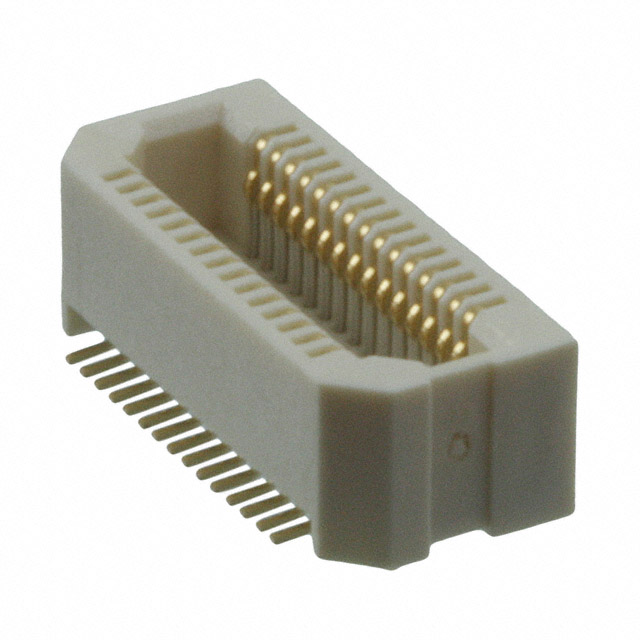

AXK5S30247YG

AXK5S30247YG

Part Number	AXK5S30247YG
Manufacturer	Panasonic Electric Works
Other Part Numbers	255-3234-2-ND 255-3234-1-ND 255-3234-6-ND Q2591472 AXK5S30247YG-ND 255-3234-1 255-3234-2 255-3234-6
Description	CONN SOCKET 30POS SMD GOLD
Detailed Description	30 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer		Panasonic Electric Works
Series		P5KS
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Connector Type		Socket, Center Strip Contacts
Contact Finish		Gold
Mounting Type		Surface Mount
Number of Positions		30
Pitch		0.020" (0.50mm)
Height Above Board		0.140" (3.55mm)
Mated Stacking Heights		4.5mm, 5.5mm, 6.5mm
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		How to Read Date Codes
Datasheets		Connectors SMD-Technical Info

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

In Stock: 12390

Can ship immediately.
