AX97-103R3

Part Number
AX97-103R3
Manufacturer Triad Magnetics
Other Part Numbers
AX97-103R3-ND
Description FIXED IND 3.3UH 2A 90 MOHM SMD

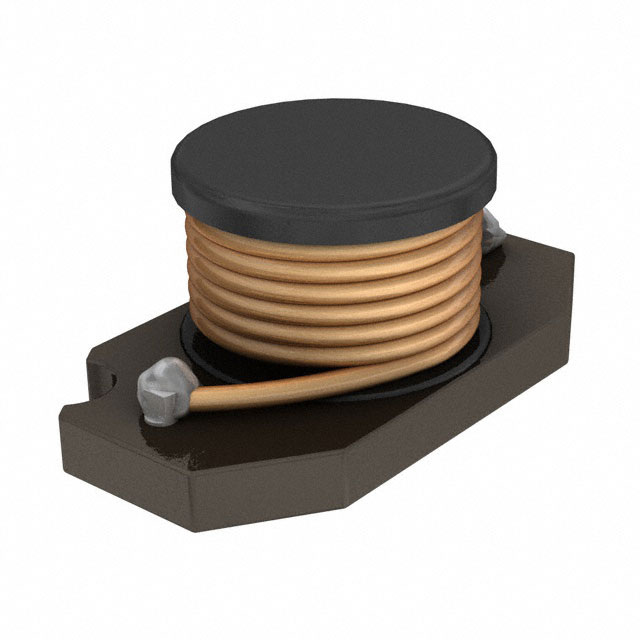

Detailed Description 3.3 µH Unshielded Drum Core, Wirewound Inductor 2 A 90mOhm Max Nonstandard
Manufacturer Standard Lead Time 23 weeks

Product Attributes

Category
Manufacturer Triad Magnetics
Series
AX97
Packaging
Bulk
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.287" L x 0.188" W (7.30mm x 4.78mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 90mOhm Max
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Supplier Device Package SMD
Height - Seated (Max) 0.127" (3.23mm)
Inductance 3.3 µH
Current Rating (Amps) 2 A

Documents & Media

RESOURCE TYPE LINK
Datasheets AX97-103R3
Datasheets Standard Part Warranty Terms
Datasheets RoHS Statement

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
