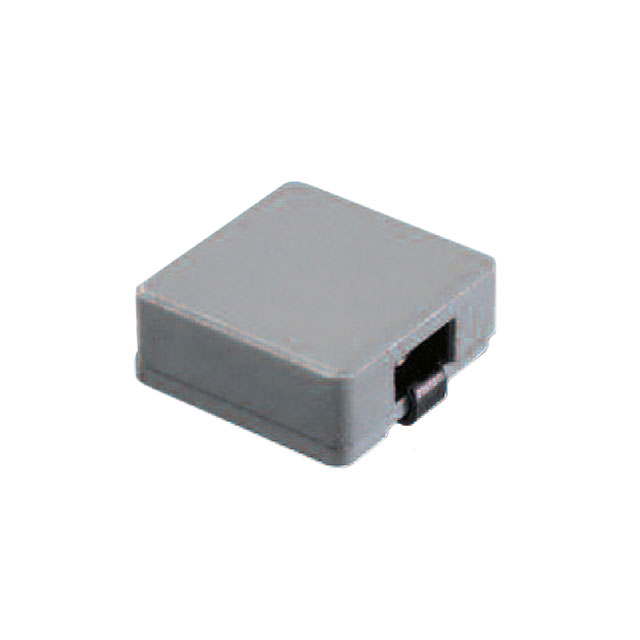

AX02-306R4-T _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	AX02-306R4-T
Manufacturer	Triad Magnetics
Other Part Numbers	237-AX02-306R4-TTR-ND 237-AX02-306R4-T AX02-306R4-ND 237-AX02-306R4-TTR 237-AX02-306R4-T-ND AX02-306R4
Description	FIXED IND 6.4UH 6.5A 8.5MOHM SMD
Detailed Description	6.4 µH Shielded Drum Core, Wirewound Inductor 6.5 A 8.5mOhm Max 2-SMD, J-Lead
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Triad Magnetics
Series		AX02
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±20%
Package / Case		2-SMD, J-Lead
Size / Dimension		0.524" L x 0.591" W (13.30mm x 15.00mm)
Mounting Type		Surface Mount
Shielding		Shielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 85°C
DC Resistance (DCR)		8.5mOhm Max
Current - Saturation (Isat)		16A
Material - Core		Ferrite
Inductance Frequency - Test		100 kHz
Supplier Device Package		SMD
Height - Seated (Max)		0.256" (6.50mm)
Inductance		6.4 µH
Current Rating (Amps)		6.5 A

RESOURCE TYPE		LINK
Datasheets		AX02-306R4-T
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
