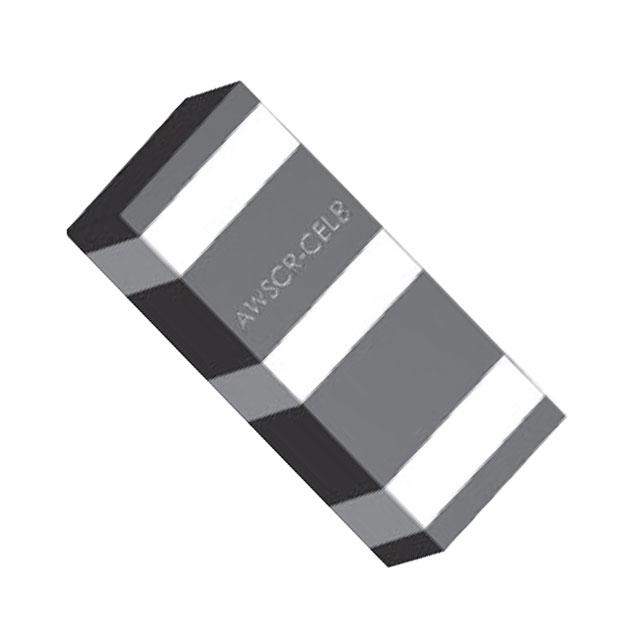

AWSCR-8.00CELB-C33-T3

AWSCR-8.00CELB-C33-T3

Part Number	AWSCR-8.00CELB-C33-T3
Manufacturer	Abracon
Other Part Numbers	535-15113-2-ND 535-15113-1-ND 535-15113-6-ND 535-15113-6 535-15113-2 535-15113-1
Description	CERAMIC RES 8.0000MHZ 33PF SMD
Detailed Description	8 MHz Ceramic Resonator Built in Capacitor 33 pF ±0.2% 40 Ohms -40°C ~ 125°C Surface Mount
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Resonators
Manufacturer		Abracon
Series		AWSCR-CELB
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Built in Capacitor
Package / Case		3-SMD, Non-Standard
Size / Dimension		0.126" L x 0.051" W (3.20mm x 1.30mm)
Mounting Type		Surface Mount
Type		Ceramic
Operating Temperature		-40°C ~ 125°C
Frequency Stability		±0.2%
Height		0.039" (1.00mm)
Frequency Tolerance		±0.5%
Capacitance		33 pF
Impedance		40 Ohms
Frequency		8 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AWSCR-8.00CELB-C33-T3
Datasheets		Abracon REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

In Stock: 2670

Can ship immediately.
