AWHW10G-0102-T-R _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	AWHW10G-0102-T-R
Manufacturer	ASSMANN WSW Components
Other Part Numbers	HRU10H-ND AWHW10-G-0102-T-R HRU10H

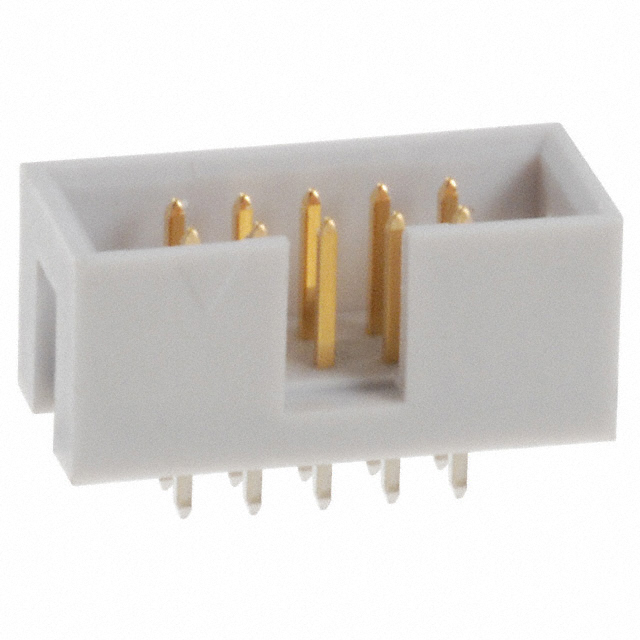

Description	CONN HEADER VERT 10POS 2.54MM
Detailed Description	Connector Header Through Hole 10 position 0.100" (2.54mm)

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		ASSMANN WSW Components
Series
Packaging		Tray
Part Status		Obsolete
Features		Keying Slot
Connector Type		Header
Current Rating (Amps)		3A
Mounting Type		Through Hole
Number of Positions		10
Number of Rows		2
Style		Board to Cable/Wire
Operating Temperature		-40°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		Gray
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		30.0µin (0.76µm)
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.130" (3.30mm)
Insulation Height		0.354" (9.00mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating		0.100" (2.54mm)
Contact Length - Mating		0.224" (5.70mm)

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
