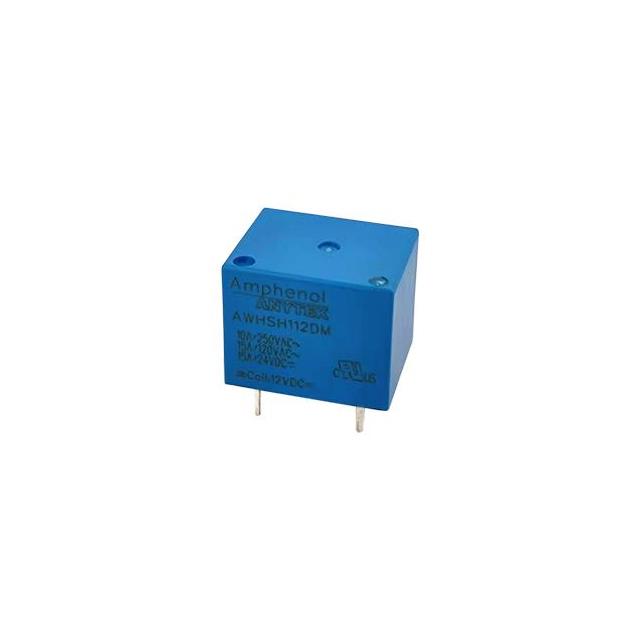

AWHSH112D00G

Part Number
AWHSH112D00G
Manufacturer Anytek (Amphenol Anytek)
Other Part Numbers
1818-AWHSH112D00G-ND
1818-AWHSH112D00G
Description RELAY GEN PURPOSE SPST 15A 12V
Detailed Description General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Manufacturer Standard Lead Time 14 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Anytek (Amphenol Anytek)
Series
AWH
Packaging
Box
Part Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Operating Temperature -30°C ~ 85°C
Termination Style PC Pin
Approval Agency UL
Relay Type General Purpose
Coil Current 30 mA
Coil Type Non Latching
Seal Rating Sealed - Fully
Contact Material Silver Alloy
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 15 A
Switching Voltage 240VAC, 110VDC - Max
Must Release Voltage 0.6 VDC
Must Operate Voltage 9 VDC
Operate Time 10 ms
Release Time 5 ms
Coil Resistance 400 Ohms
Load - Max Switching 3600VA, 1650W

Documents & Media

RESOURCE TYPE LINK
Datasheets AWHSH112D00G

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.41.0050
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant

In Stock: 1766

Can ship immediately.
