Part Number |
AWG28-24/F/300
|
---|---|
Manufacturer | ASSMANN WSW Components |
Other Part Numbers |
AE24M-100-ND
AE24M-100
|
Description | CBL RIBN 24COND 0.05 MULT 100' |

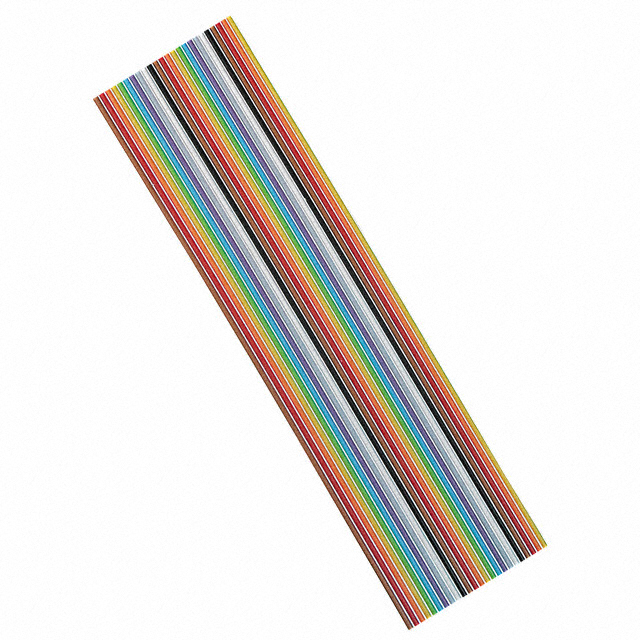

Detailed Description | Flat Ribbon Cable Multiple 24 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m) |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | ASSMANN WSW Components | |
Series |
AWG
|
|
Packaging |
Bulk
|
|
Part Status | Discontinued | |
Length | 100.0' (30.48m) | |
Wire Gauge | 28 AWG | |
Shielding | Unshielded | |
Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | |
Conductor Strand | 7 Strands / 36 AWG | |
Pitch | 0.050" (1.27mm) | |
Operating Temperature | 105°C | |
Number of Conductors | 24 | |
Cable Type | Flat Cable | |
Ratings | UL Style 2651 | |
Conductor Material | Copper, Tinned | |
Jacket Color | Multiple | |
Insulation Resistance | 100MOhms | |
Ribbon Thickness | 0.035" (0.89mm) | |
Ribbon Width | 1.200" (30.48mm) | |
First Conductor Mark | Red | |
Voltage | 300 V |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | AWG Series_24 | |
Datasheets | AWG28-xx/F/300 Drawing |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8544.49.3080 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
