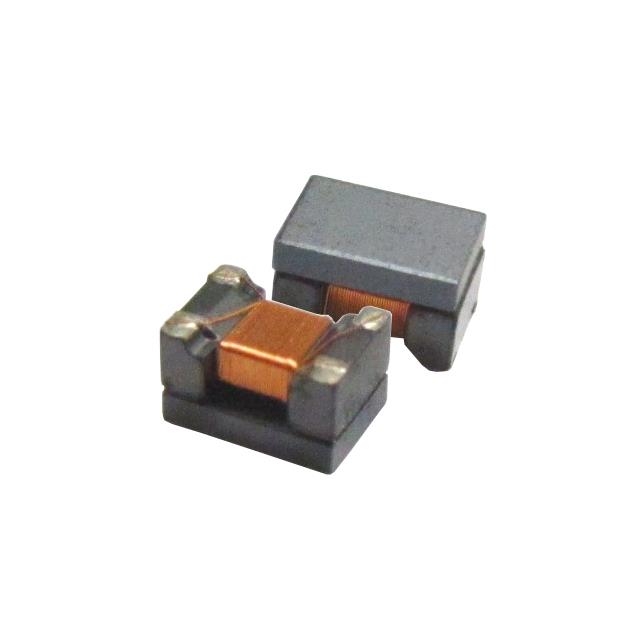

AWCU00201212161M02

AWCU00201212161M02

Part Number	AWCU00201212161M02
Manufacturer	Pulse Larsen Antenna
Other Part Numbers	553-AWCU00201212161M02TR-ND 553-AWCU00201212161M02TR
Description	CMC 350MA 2LN 160OHM SMD AECQ200
Detailed Description	2 Line Common Mode Choke Surface Mount 160 Ohms @ 100 MHz 350mA DCR 350mOhm
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		Pulse Larsen Antenna
Series		AWCU
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		Horizontal, 4 PC Pad
Filter Type		Signal Line
Size / Dimension		0.081" L x 0.049" W (2.05mm x 1.25mm)
Mounting Type		Surface Mount
Number of Lines		2
Operating Temperature		-50°C ~ 150°C
Ratings		AEC-Q200
Height (Max)		0.055" (1.40mm)
Voltage Rating - DC		50V
Current Rating (Max)		350mA
DC Resistance (DCR) (Max)		350mOhm
Impedance @ Frequency		160 Ohms @ 100 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AWCU00201212161M02
Datasheets		Pulse Larson REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
