AWCM0011060533NH00 _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	AWCM0011060533NH00
Manufacturer	Pulse Larsen Antenna
Other Part Numbers	553-AWCM0011060533NH00TR-ND 553-AWCM0011060533NH00TR
Description	INDUCTOR RF

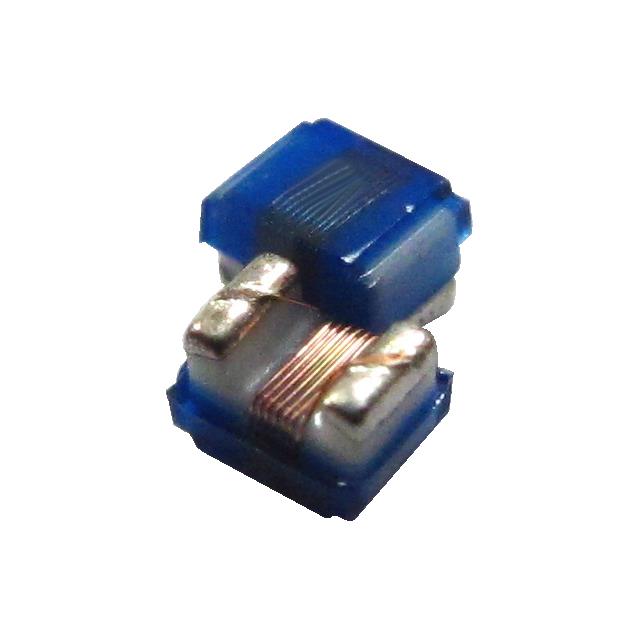

Detailed Description	33 nH Unshielded Drum Core, Wirewound Inductor 260 mA 630mOhm Max 0402 (1005 Metric)
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Pulse Larsen Antenna
Series		AWCM
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±3%
Package / Case		0402 (1005 Metric)
Size / Dimension		0.041" L x 0.024" W (1.05mm x 0.60mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		630mOhm Max
Q @ Freq		25 @ 250MHz
Frequency - Self Resonant		3.2GHz
Ratings		AEC-Q200
Material - Core		Ceramic
Inductance Frequency - Test		100 MHz
Supplier Device Package		0402
Height - Seated (Max)		0.022" (0.55mm)
Inductance		33 nH
Current Rating (Amps)		260 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
