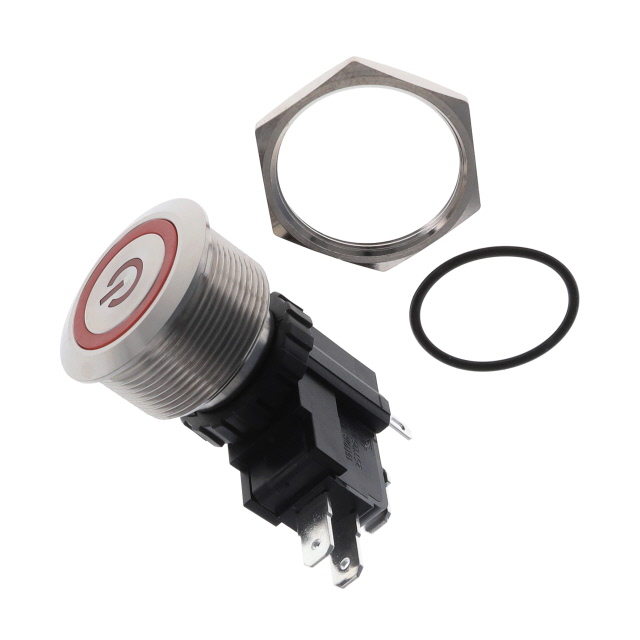

AVH25LSSFE13121604 _ Pushbutton Switches_Switches

Part Number	AVH25LSSFE13121604
Manufacturer	TE Connectivity ALCOSWITCH Switches
Other Part Numbers	450-AVH25LSSFE13121604-ND 2364702-6 450-AVH25LSSFE13121604 2266-AVH25LSSFE13121604
Description	SWITCH PUSHBUTTON SPDT 16A 125V
Detailed Description	Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Category		Switches Pushbutton Switches
Manufacturer		TE Connectivity ALCOSWITCH Switches
Series		AVH
Packaging		Box
Part Status		Active
Current Rating (Amps)		16A (AC)
Mounting Type		Panel Mount, Front
Circuit		SPDT
Type		Anti-Vandal, Illuminated
Switch Function		On-On
Operating Temperature		-25°C ~ 85°C
Termination Style		Quick Connect - 0.187" (4.7mm)
Illumination Type, Color		LED, Red
Illumination Voltage (Nominal)		12 VDC
Actuator Type		Round, Button, Flush
Ingress Protection		IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions		Circular - 25.20mm Dia
Color - Actuator/Cap		Silver
Actuator Marking		Power Symbol
Voltage Rating - AC		125 V

RESOURCE TYPE		LINK
Datasheets		AVH25LSSFE13121604

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
