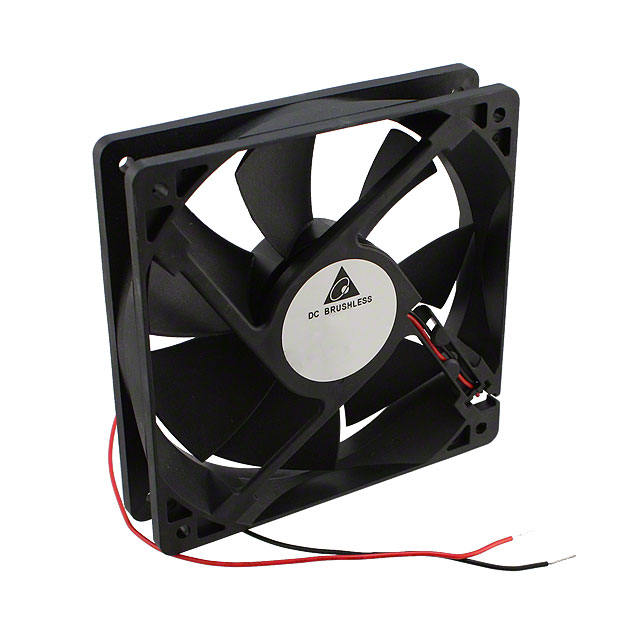

AUB1212H-CK15

Part Number
AUB1212H-CK15
Manufacturer Delta Electronics / Fans
Other Part Numbers
603-1765-ND
AUB1212HCK15
603-1765
Description FAN AXIAL 120X25.4MM 12VDC WIRE
Detailed Description Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Superflo 88.6 CFM (2.48m³/min) 4 Wire Leads

Product Attributes

Category
Manufacturer Delta Electronics / Fans
Series
AUB
Packaging
Bulk
Part Status Obsolete
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Voltage - Rated 12VDC
Size / Dimension Square - 120mm L x 120mm H
Bearing Type Superflo
RPM 2200 RPM
Air Flow 88.6 CFM (2.48m³/min)
Width 25.40mm
Weight 0.485 lb (220.00 g)
Operating Temperature 14 ~ 140°F (-10 ~ 60°C)
Termination 4 Wire Leads
Approval Agency CE, CSA, UL, VDE
Fan Type Tubeaxial
Noise 38.0dB(A)
Static Pressure 0.161 in H2O (40.2 Pa)
Power (Watts) 3.24 W

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8414.59.6590
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
