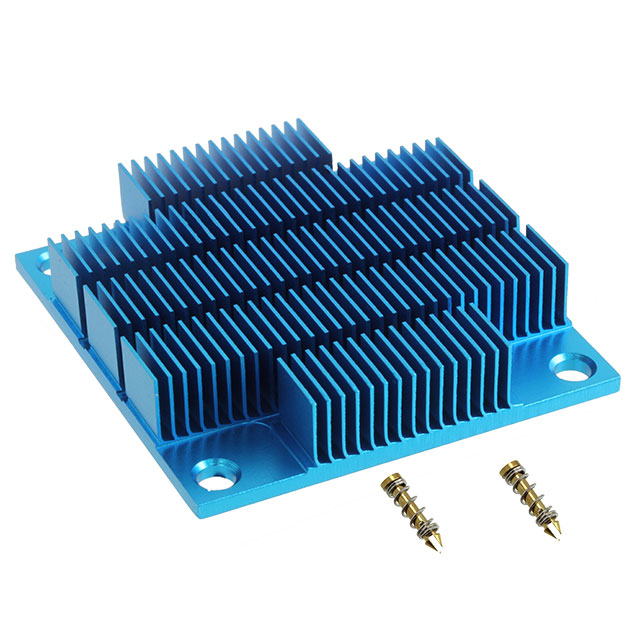

ATS-05F-105-C2-R1

ATS-05F-105-C2-R1

Part Number	ATS-05F-105-C2-R1
Manufacturer	Advanced Thermal Solutions, Inc.
Other Part Numbers	ATS9982-ND ATS-05F-105-C2-R1-ND ATS9982
Description	HEATSINK 45.00MM X 45.00MM ALUM
Detailed Description	Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
Manufacturer Standard Lead Time	10 weeks

Product Attributes

Category		Fans, Blowers, Thermal Management Thermal Heat Sinks
Manufacturer		Advanced Thermal Solutions, Inc.
Series		pushPIN™
Packaging		Tray
Part Status		Active
Material		Aluminum
Length		1.772" (45.00mm)
Shape		Square, Fins
Type		Top Mount
Width		1.772" (45.00mm)
Package Cooled		Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method		Push Pin
Thermal Resistance @ Forced Air Flow		28.22°C/W @ 100 LFM
Fin Height		0.374" (9.50mm)
Material Finish		Blue Anodized

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8473.30.5100
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 25

Can ship immediately.
