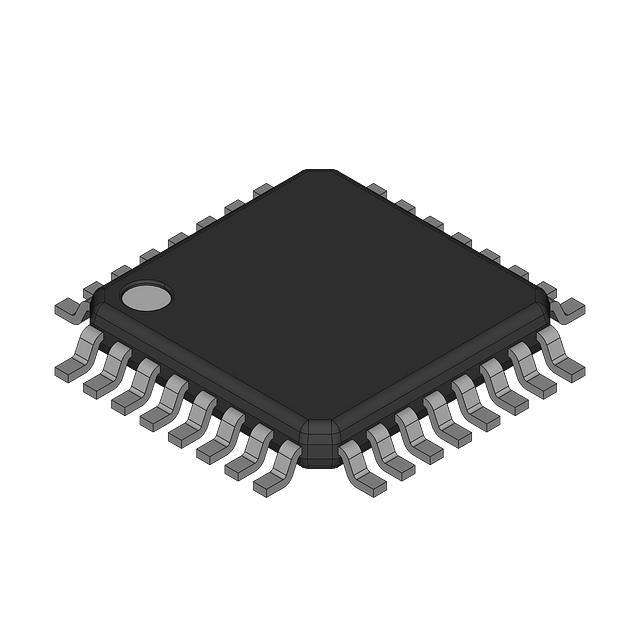

ATMEGA48-15AT1

Part Number
ATMEGA48-15AT1
Manufacturer Atmel (Microchip Technology)
Other Part Numbers
2156-ATMEGA48-15AT1-ATTR-ND
2156-ATMEGA48-15AT1-ATTR
ATMATMATMEGA48-15AT1
Description IC MCU 8BIT 4KB FLASH 32TQFP
Detailed Description AVR AVR® ATmega Microcontroller IC 8-Bit 16MHz 4KB (2K x 16) FLASH 32-TQFP (7x7)

Product Attributes

Category
Manufacturer Atmel (Microchip Technology)
Series
AVR® ATmega
Packaging
Bulk
Part Status Obsolete
Package / Case 32-TQFP
Mounting Type Surface Mount
Speed 16MHz
Program Memory Size 4KB (2K x 16)
RAM Size 512 x 8
Operating Temperature -40°C ~ 105°C (TA)
Oscillator Type Internal
Program Memory Type FLASH
EEPROM Size 256 x 8
Core Processor AVR
Data Converters A/D 8x10b
Core Size 8-Bit
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Connectivity I2C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package 32-TQFP (7x7)
Grade Automotive
Number of I/O 23
DigiKey Programmable Not Verified
Qualification AEC-Q100

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.31.0001
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
