AT91SAM7S161-AU

Part Number
AT91SAM7S161-AU
Manufacturer Atmel (Microchip Technology)
Other Part Numbers
2156-AT91SAM7S161-AU-AT-ND
2156-AT91SAM7S161-AU-AT
ATMATMAT91SAM7S161-AU
Description IC MCU 16/32BIT 16KB FLSH 64LQFP
Detailed Description ARM7® SAM7S Microcontroller IC 16/32-Bit 55MHz 16KB (16K x 8) FLASH 64-LQFP (10x10)

Product Attributes

Category
Manufacturer Atmel (Microchip Technology)
Series
SAM7S
Packaging
Tray
Part Status Obsolete

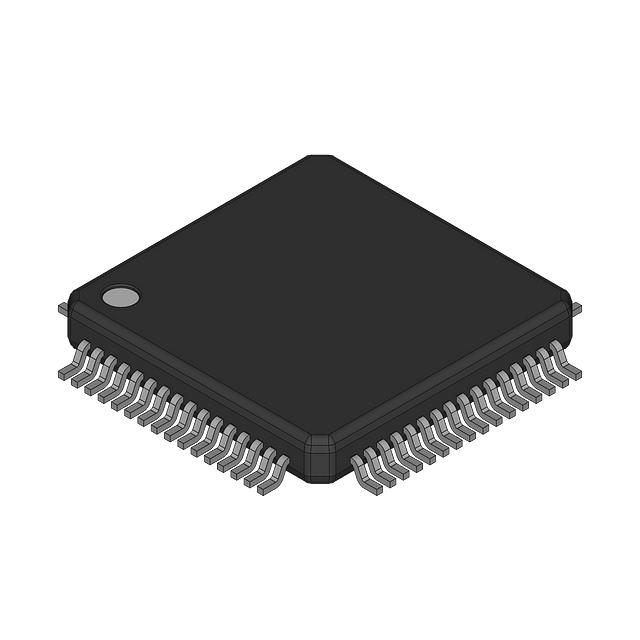

Package / Case 64-LQFP
Mounting Type Surface Mount
Speed 55MHz
Program Memory Size 16KB (16K x 8)
RAM Size 4K x 8
Operating Temperature -40°C ~ 85°C (TA)
Oscillator Type Internal
Program Memory Type FLASH
Core Processor ARM7®
Data Converters A/D 8x10b
Core Size 16/32-Bit
Voltage - Supply (Vcc/Vdd) 1.65V ~ 1.95V
Connectivity I2C, SPI, SSC, UART/USART, USB
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Supplier Device Package 64-LQFP (10x10)
Number of I/O 32
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 3A991A2
HTSUS 8542.31.0001
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
