AT90PWM1-16MUR _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	AT90PWM1-16MUR
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	AT90PWM1-16MURTR-ND AT90PWM1-16MURCT-ND AT90PWM116MUR AT90PWM1-16MURTR AT90PWM1-16MUR-ND AT90PWM1-16MURCT 1611-AT90PWM1-16MURTR 1611-AT90PWM1-16MURTR-ND 1611-AT90PWM1-16MURTRINACTIVE 1611-AT90PWM1-16MURCT
Description	IC MCU 8BIT 8KB FLASH 32QFN
Detailed Description	AVR AVR® 90PWM Lighting Microcontroller IC 8-Bit 16MHz 8KB (8K x 8) FLASH 32-QFN (7x7)
Manufacturer Standard Lead Time	7 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Roving Networks (Microchip Technology)
Series		AVR® 90PWM Lighting
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

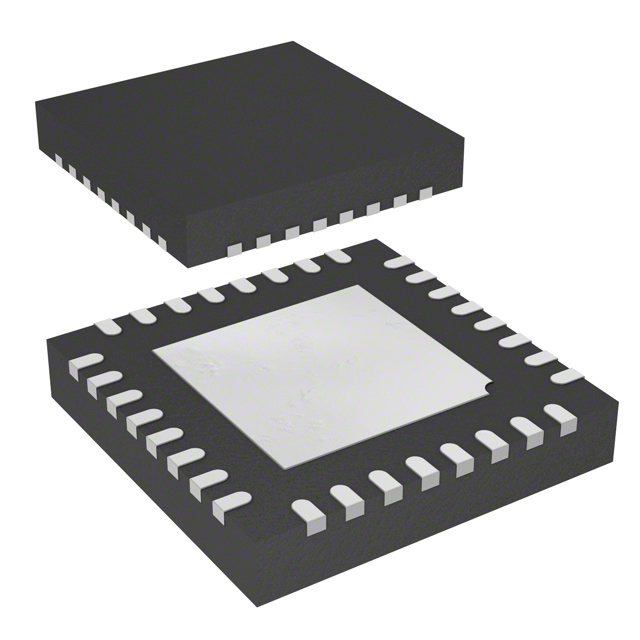

Package / Case		32-VQFN Exposed Pad
Mounting Type		Surface Mount
Speed		16MHz
Program Memory Size		8KB (8K x 8)
RAM Size		512 x 8
Operating Temperature		-40°C ~ 105°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
EEPROM Size		512 x 8
Core Processor		AVR
Data Converters		A/D 8x10b
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		2.7V ~ 5.5V
Connectivity		SPI
Peripherals		Brown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package		32-QFN (7x7)
Number of I/O		19
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		AT90PWM1-16MUR
Datasheets		AT90PWM1 Summary
Datasheets		Microchip RoHS
Datasheets		Microchip REACH
Datasheets		Marking Chgs 11/Jul/2017
Datasheets		Implement Edge Protection Technology 27/Aug/2021
Datasheets		Boxes 07/Dec/2016

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
