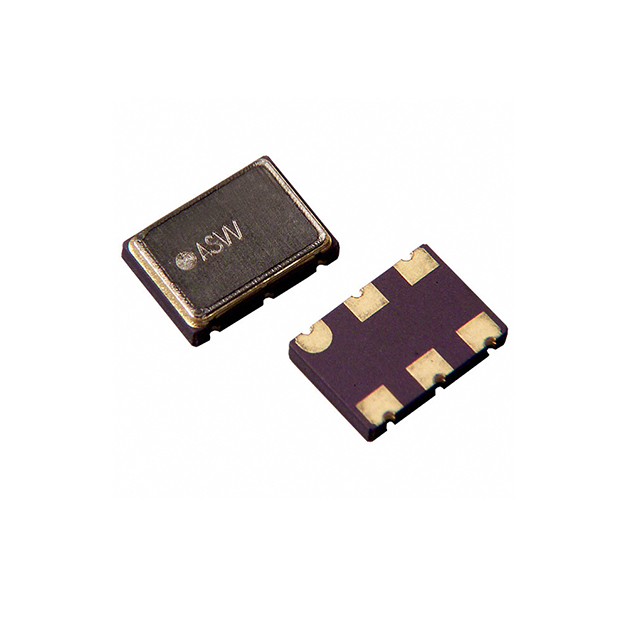

ASVV-16.000MHZ-C25-N102-T

ASVV-16.000MHZ-C25-N102-T

Part Number	ASVV-16.000MHZ-C25-N102-T
Manufacturer	Abracon
Other Part Numbers	ASVV-16.000MHZ-C25-N102-T-ND
Description	XTAL OSC VCXO 16.0000MHZ CMOS
Detailed Description	16 MHz VCXO CMOS, TTL Oscillator 3.3V Standby (Power Down) 6-SMD, No Lead
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Abracon
Series		ASVV
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		6-SMD, No Lead
Size / Dimension		0.276" L x 0.197" W (7.00mm x 5.00mm)
Mounting Type		Surface Mount
Output		CMOS, TTL
Function		Standby (Power Down)
Type		VCXO
Operating Temperature		0°C ~ 70°C
Frequency Stability		±25ppm
Voltage - Supply		3.3V
Current - Supply (Max)		8mA
Height - Seated (Max)		0.079" (2.00mm)
Frequency		16 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ASVV-16.000MHZ-C25-N102-T
Datasheets		Abracon REACH
Datasheets		ASVV.pdf
Datasheets		ASVV Drawing
Datasheets		ASVV Series Bottom
Datasheets		ASVV Series Side 2
Datasheets		ASVV Series Top
Datasheets		ASVV_Series-Side1

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
