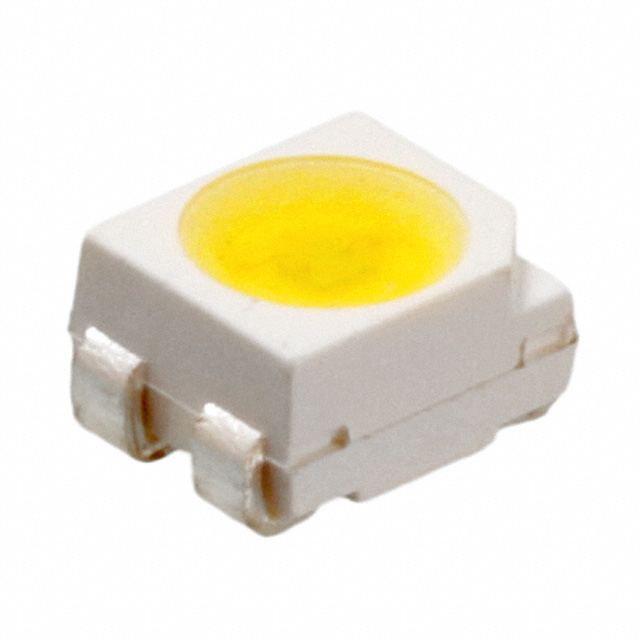

ASMT-QWBC-NJKLE

ASMT-QWBC-NJKLE

Part Number	ASMT-QWBC-NJKLE
Manufacturer	Broadcom
Other Part Numbers	516-ASMT-QWBC-NJKLETR-ND 516-ASMT-QWBC-NJKLECT-ND 516-ASMT-QWBC-NJKLEDKR-ND 516-ASMT-QWBC-NJKLETR 516-ASMT-QWBC-NJKLECT 516-ASMT-QWBC-NJKLEDKR
Description	LED COOL WHITE 7250K 4PLCC
Detailed Description	LED Lighting - White, Cool 7250K (4500K ~ 10000K) 3.4V 150mA 120° 4-PLCC
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED White Lighting
Manufacturer		Broadcom
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-PLCC
Color		White, Cool
Size / Dimension		0.126" L x 0.110" W (3.20mm x 2.80mm)
Mounting Type		Surface Mount
Voltage - Forward (Vf) (Typ)		3.4V
Current - Test		150mA
Viewing Angle		120°
Current - Max		150mA
Supplier Device Package		4-PLCC
Lumens/Watt @ Current - Test		88 lm/W
Height - Seated (Max)		0.083" (2.10mm)
CCT (K)		7250K (4500K ~ 10000K)
Flux @ 25°C, Current - Test		45lm (33lm ~ 56lm)
Thermal Resistance of Package		40°C/W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		New Die Source 27/Dec/2022

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		2 (1 Year)
RoHS Status		ROHS3 Compliant

In Stock: 11

Can ship immediately.
