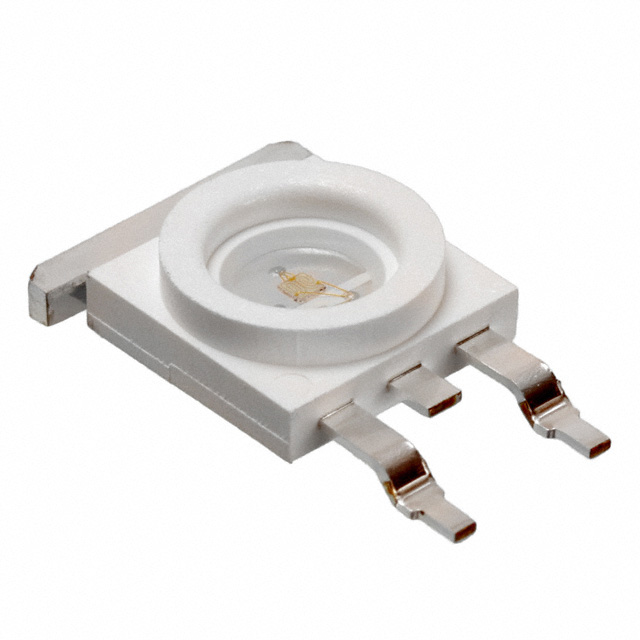

ASMT-MB00-NDF00

ASMT-MB00-NDF00

Part Number	ASMT-MB00-NDF00
Manufacturer	Broadcom
Other Part Numbers	516-ASMT-MB00-NDF00-ND ASMTMB00NDF00 516-2675-5 516-2675-5-ND ASMT-MB00-NDF00-ND 516-ASMT-MB00-NDF00
Description	LED MOONSTONE BLUE 470NM
Detailed Description	LED Lighting Color Moonstone™ Blue 470nm (460nm ~ 480nm) TO-252-3, DPAK (2 Leads + Tab), SC-63
Manufacturer Standard Lead Time	98 weeks
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Color Lighting
Manufacturer		Broadcom
Series		Moonstone™
Packaging		Tube
Part Status		Active
Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Color		Blue
Wavelength		470nm (460nm ~ 480nm)
Size / Dimension		0.335" L x 0.335" W (8.50mm x 8.50mm)
Mounting Type		Surface Mount
Voltage - Forward (Vf) (Typ)		3.6V
Current - Test		350mA
Viewing Angle		120°
Current - Max		350mA
Lumens/Watt @ Current - Test		15 lm/W
Height - Seated (Max)		0.134" (3.40mm)
Thermal Resistance of Package		10°C/W
Temperature - Test		25°C
Luminous Flux @ Current/Temperature		19lm (12lm ~ 26lm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		New Replacement Die 31/Mar/2015
Datasheets		Die Replacement Update 16/Mar/2015

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		2A (4 Weeks)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1435

Can ship immediately.
