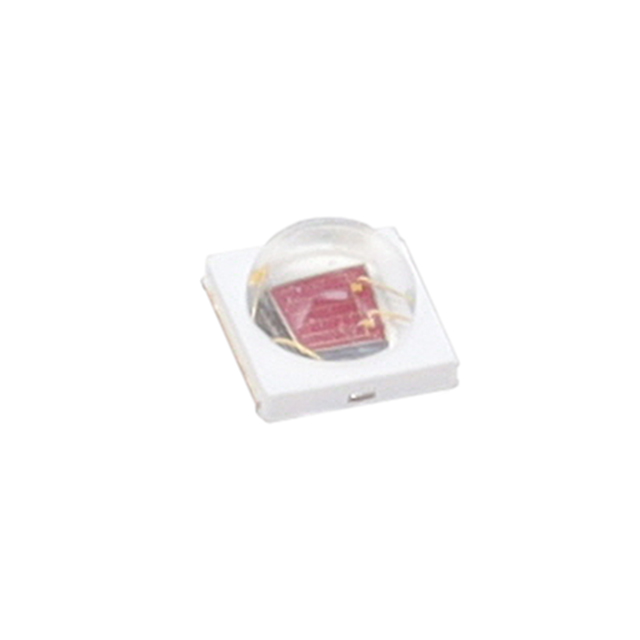

ASM6-S3D0-ANQ0H

ASM6-S3D0-ANQ0H

Part Number	ASM6-S3D0-ANQ0H
Manufacturer	Broadcom
Other Part Numbers	516-ASM6-S3D0-ANQ0HTR-ND 516-ASM6-S3D0-ANQ0HCT-ND 516-ASM6-S3D0-ANQ0HDKR-ND 516-ASM6-S3D0-ANQ0HDKR 516-ASM6-S3D0-ANQ0HTR 516-ASM6-S3D0-ANQ0HCT
Description	LED ASM6-SXXX-XXXXH FAR RED 3SMD
Detailed Description	LED Lighting Color ASM6-Sxxx-xxxxH Red 735nm (720nm ~ 745nm) 3-SMD, No Lead
Manufacturer Standard Lead Time	26 weeks
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Color Lighting
Manufacturer		Broadcom
Series		ASM6-Sxxx-xxxxH
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		3-SMD, No Lead
Color		Red
Wavelength		735nm (720nm ~ 745nm)
Size / Dimension		0.136" L x 0.136" W (3.45mm x 3.45mm)
Mounting Type		Surface Mount
Voltage - Forward (Vf) (Typ)		2.1V
Current - Test		350mA
Viewing Angle		130°
Current - Max		700mA
Supplier Device Package		3-SMD
Height - Seated (Max)		0.083" (2.10mm)
Temperature - Test		25°C
Luminous Flux @ Current/Temperature		350mW (330mW ~ 480mW)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ASM6-S3D0-ANQ0H

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 4

Can ship immediately.
