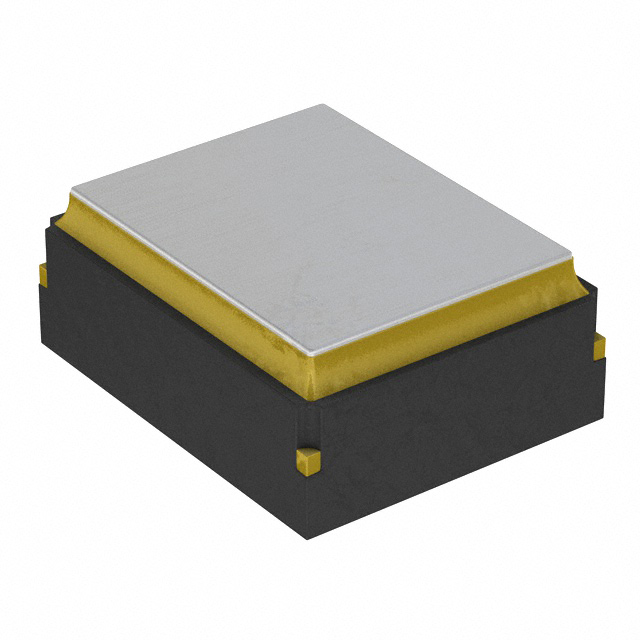

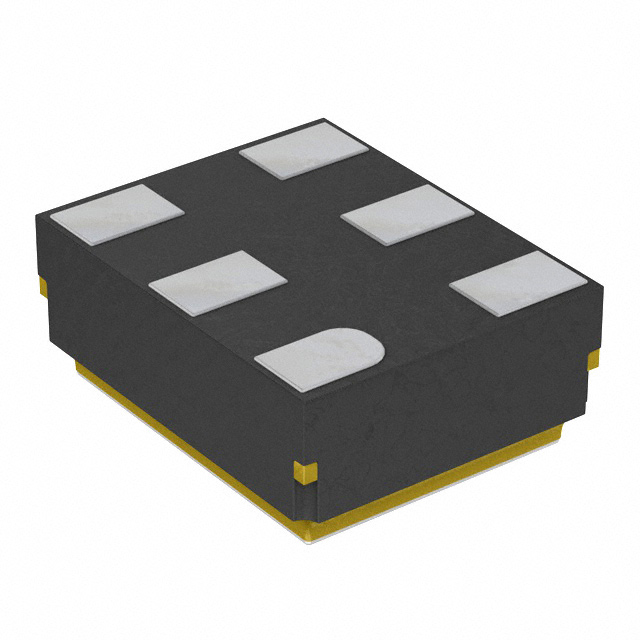

ASG2-P-X-A-500.000MHZ

ASG2-P-X-A-500.000MHZ

Part Number	ASG2-P-X-A-500.000MHZ
Manufacturer	Abracon
Other Part Numbers	535-ASG2-P-X-A-500.000MHZ-ND 535-12652 535-12652-ND 535-ASG2-P-X-A-500.000MHZ
Description	XTAL OSC XO 500.0000MHZ LVPECL
Detailed Description	500 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Manufacturer Standard Lead Time	19 weeks

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Abracon
Series		ASG2-P
Packaging		Bulk
Part Status		Active
Package / Case		6-SMD, No Lead
Size / Dimension		0.098" L x 0.079" W (2.50mm x 2.00mm)
Mounting Type		Surface Mount
Output		LVPECL
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±35ppm
Voltage - Supply		3.3V
Current - Supply (Max)		65mA
Height - Seated (Max)		0.039" (1.00mm)
Frequency		500 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ASG2-P-X-A-500.000MHZ
Datasheets		Abracon REACH
Datasheets		ASG2-D.pdf

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 9

Can ship immediately.
