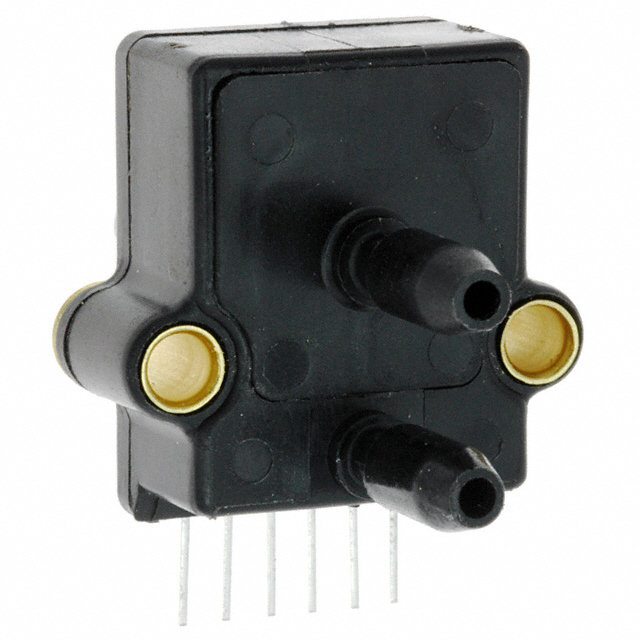

Part Number |
ASCX150AN
|
---|---|
Manufacturer | Honeywell Sensing and Productivity Solutions |
Other Part Numbers |
287-1006-ND
287-1006
287-1006-NDR
|
Description | SENSOR 150PSIA 0.19" 4.75V |
Detailed Description | Pressure Sensor 150PSI (1034.21kPa) Absolute Male - 0.19" (4.8mm) Tube 0.25 V ~ 4.75 V 6-SIP Module |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Honeywell Sensing and Productivity Solutions | |
Series |
ASCX
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Features | Amplified Output, Temperature Compensated | |
Package / Case | 6-SIP Module | |
Output Type | Analog Voltage | |
Mounting Type | Through Hole | |
Output | 0.25 V ~ 4.75 V | |
Operating Pressure | 150PSI (1034.21kPa) | |
Pressure Type | Absolute | |
Accuracy | ±1% | |
Operating Temperature | -25°C ~ 105°C | |
Termination Style | PC Pin | |
Voltage - Supply | 4.5V ~ 16V | |
Port Size | Male - 0.19" (4.8mm) Tube | |
Applications | Board Mount | |
Port Style | Barbless | |
Maximum Pressure | 150PSI (1034.21kPa) |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | ASCX,DC,XCA 19/Apr/2010 | |
Datasheets | ASCX, SCX Series Side |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 9026.20.4000 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS Compliant |
