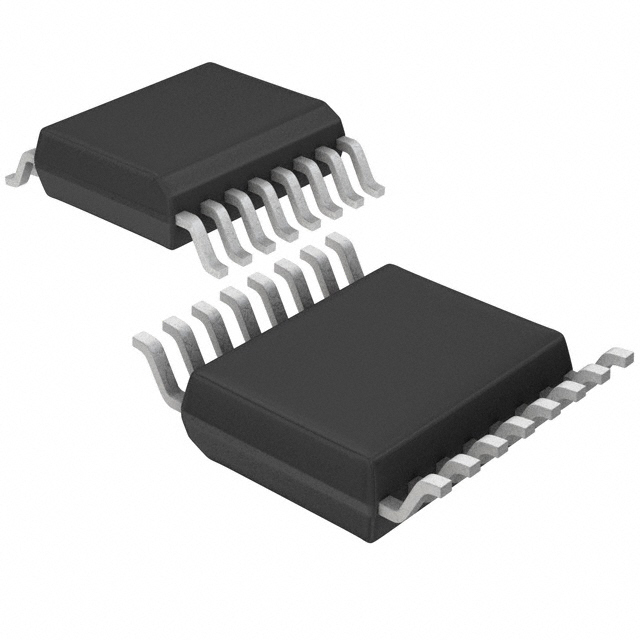

AS5145B-HSSM SSOP16 LF T&RDP

AS5145B-HSSM SSOP16 LF T&RDP

Part Number	AS5145B-HSSM SSOP16 LF T&RDP
Manufacturer	OSRAM Opto Semiconductors (ams OSRAM)
Other Part Numbers	AS5145B-HSSMTR-NDL AS5145B-HSSMTR-ND AS5145B-HSSMCT-ND AS5145B-HSSMDKR-ND Q9235489A AS5145B-HSSMDKR AS5145B-HSSMTR Q65114A0598 177710101 AS5145B-HSSMCT 177710103 177710125 AS5145B-HSSM-ND AS5145B-HSSM
Description	ROTARY ENCODER MAGNETIC 4096PPR
Detailed Description	Rotary Encoder Magnetic 4096 Quadrature (Incremental)
Manufacturer Standard Lead Time	23 weeks

Product Attributes

Category		Sensors, Transducers Encoders
Manufacturer		OSRAM Opto Semiconductors (ams OSRAM)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Output Type		Quadrature (Incremental)
Mounting Type		Surface Mount
Termination Style		SMD (SMT) Tab
Voltage - Supply		3V ~ 3.6V, 4.5V ~ 5.5V
Encoder Type		Magnetic
Detent		No
Pulses per Revolution		4096
Actuator Type		External Magnet, Not Included
Built in Switch		No
Grade		Automotive
DigiKey Programmable		Not Verified
Qualification		AEC-Q100

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
