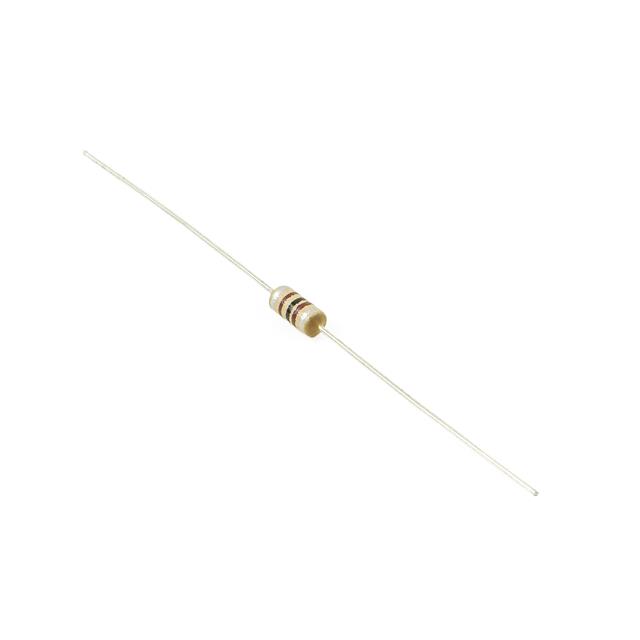

AS20-1R5K-RC

Part Number
AS20-1R5K-RC
Manufacturer Allied Components International
Other Part Numbers
3475-AS20-1R5K-RC-ND
3475-AS20-1R5K-RC
Description 1.5UH 10% AXIAL SHIELDED IND.
Detailed Description 1.5 µH Shielded Inductor 260mOhm Max Axial
Datasheet Datasheet

Product Attributes

Category
Manufacturer Allied Components International
Series
AS20
Packaging
Bag
Part Status Active
Tolerance ±10%
Package / Case Axial
Size / Dimension 0.100" Dia x 0.250" L (2.54mm x 6.35mm)
Mounting Type Through Hole
Shielding Shielded
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 260mOhm Max
Q @ Freq 29 @ 7.9MHz
Frequency - Self Resonant 136MHz
Current - Saturation (Isat) 825mA
Inductance Frequency - Test 7.9 MHz
Supplier Device Package Axial
Inductance 1.5 µH

Documents & Media

RESOURCE TYPE LINK
Datasheets AS20-1R5K-RC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH info available upon request
RoHS Status RoHS Compliant
