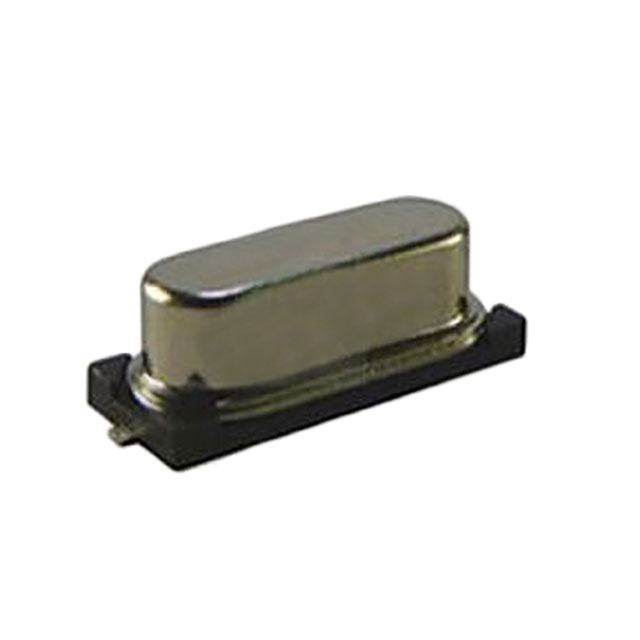

AS-5.000-18-EXT-SMD-TR

AS-5.000-18-EXT-SMD-TR

Part Number	AS-5.000-18-EXT-SMD-TR
Manufacturer	Raltron
Other Part Numbers	2151-AS-5.000-18-EXT-SMD-TR-ND 2151-AS-5.000-18-EXT-SMD-TRCT-ND 2151-AS-5.000-18-EXT-SMD-TRDKR-ND 2151-AS-5.000-18-EXT-SMD-TR 2151-AS-5.000-18-EXT-SMD-TRCT 2151-AS-5.000-18-EXT-SMD-TRDKR
Description	CRYSTAL 5.0000MHZ 18PF SMD
Detailed Description	5 MHz ±30ppm Crystal 18pF HC-49/US
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Raltron
Series		AS-SMD
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		HC-49/US
Load Capacitance		18pF
Size / Dimension		0.472" L x 0.189" W (12.00mm x 4.80mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±50ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.181" (4.60mm)
Frequency		5 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AS-5.000-18-EXT-SMD-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2990

Can ship immediately.
