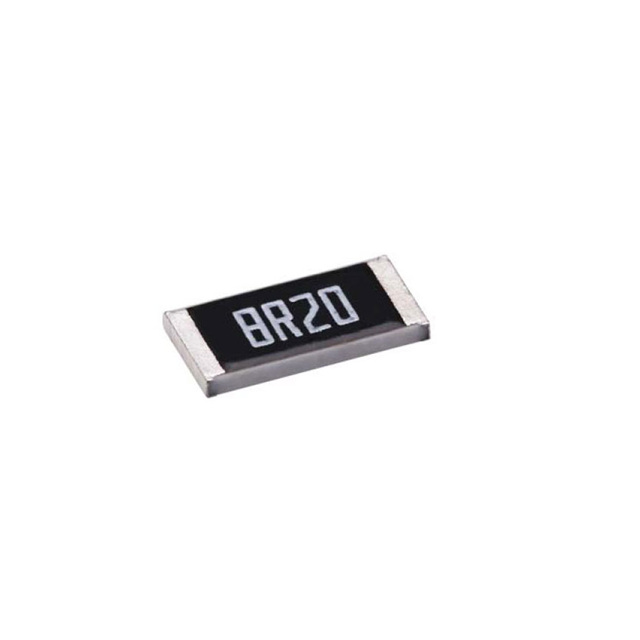

AR05DTC1501

AR05DTC1501

Part Number	AR05DTC1501
Manufacturer	Viking Tech
Other Part Numbers	2577-AR05DTC1501TR-ND 2577-AR05DTC1501TR
Description	RES 1.5K OHM 0.5% 1/10W 0805
Detailed Description	1.5 kOhms ±0.5% 0.1W, 1/10W Chip Resistor 0805 (2012 Metric) Thin Film
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		Viking Tech
Series		AR
Packaging		Tape & Reel (TR)
Part Status		Active
Power (Watts)		0.1W, 1/10W
Tolerance		±0.5%
Package / Case		0805 (2012 Metric)
Temperature Coefficient		±25ppm/°C
Size / Dimension		0.079" L x 0.049" W (2.00mm x 1.25mm)
Composition		Thin Film
Operating Temperature		-55°C ~ 155°C
Number of Terminations		2
Supplier Device Package		0805
Height - Seated (Max)		0.026" (0.65mm)
Resistance		1.5 kOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AR05DTC1501

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.40.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
