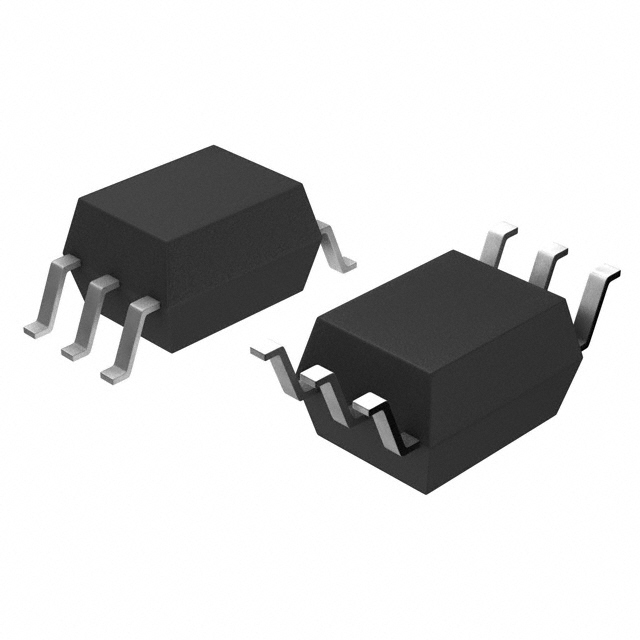

AQV214SX

AQV214SX

Part Number	AQV214SX
Manufacturer	Panasonic Electric Works
Other Part Numbers	255-AQV214SXTR-ND 255-AQV214SXCT-ND 255-AQV214SXDKR-ND AQV214SX-ND 255-AQV214SXDKR Q4643165 255-2112-2 255-2112-2-NDL 255-AQV214SXCT 255-AQV214SXTR 255-2112-2-ND
Description	SSR RELAY SPST-NO 100MA 0-400V
Detailed Description	Solid State SPST-NO (1 Form A) 6-SOP (0.173", 4.40mm)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Relays Solid State Relays (SSR)
Manufacturer		Panasonic Electric Works
Series		PhotoMOS™ AQV
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		6-SOP (0.173", 4.40mm)
Output Type		AC, DC
Mounting Type		Surface Mount
Voltage - Input		1.14VDC
Circuit		SPST-NO (1 Form A)
Termination Style		Gull Wing
Load Current		100 mA
Supplier Device Package		6-SOP
Voltage - Load		0 V ~ 400 V
On-State Resistance (Max)		50 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		How to Read Date Codes
Datasheets		PhotoMOS Schematic & Wiring Diagrams
Datasheets		Mult Devs Brand/Safety Marking 17/Nov/2021
Datasheets		AQV2x, 4x Series

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0030
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 17000

Can ship immediately.
