APT30GP60B2DLG

Part Number
APT30GP60B2DLG
Manufacturer Microsemi Corporation
Other Part Numbers
150-APT30GP60B2DLG-ND
150-APT30GP60B2DLG
APT30GP60B2DLG-ND

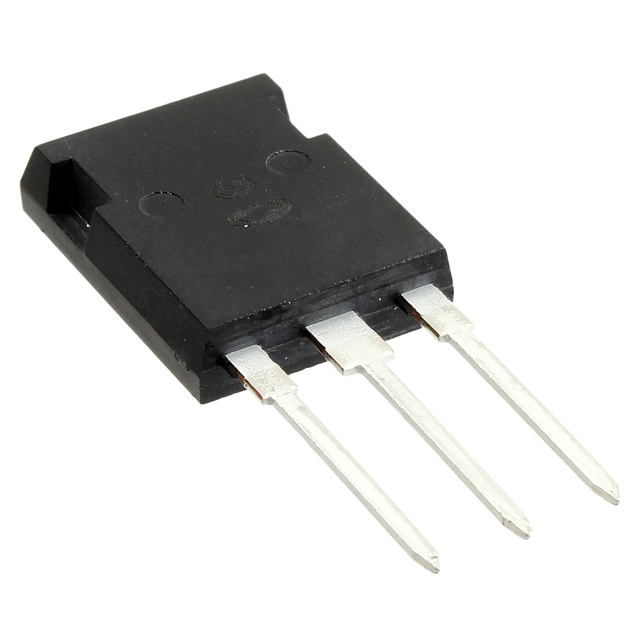

Description IGBT PT 600V 100A TMAX
Detailed Description IGBT PT 600 V 100 A 463 W Through Hole T-MAX™

Product Attributes

Category
Manufacturer Microsemi Corporation
Series
Packaging
Tube
Part Status Active
Package / Case TO-247-3
Mounting Type Through Hole
Operating Temperature -55°C ~ 150°C (TJ)
Input Type Standard
Vce(on) (Max) @ Vge, Ic 2.7V @ 15V, 30A
Supplier Device Package T-MAX™
IGBT Type PT
Td (on/off) @ 25°C 13ns/55ns
Switching Energy 260µJ (on), 250µJ (off)
Test Condition 400V, 30A, 5Ohm, 15V
Gate Charge 90 nC
Current - Collector (Ic) (Max) 100 A
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector Pulsed (Icm) 120 A
Power - Max 463 W

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
