API-4260-LW150-R _ Alarms, Buzzers, and Sirens_Audio Products

Part Number	API-4260-LW150-R
Manufacturer	PUI Audio, Inc.
Other Part Numbers	668-1213-ND API4260LW150R 668-1213

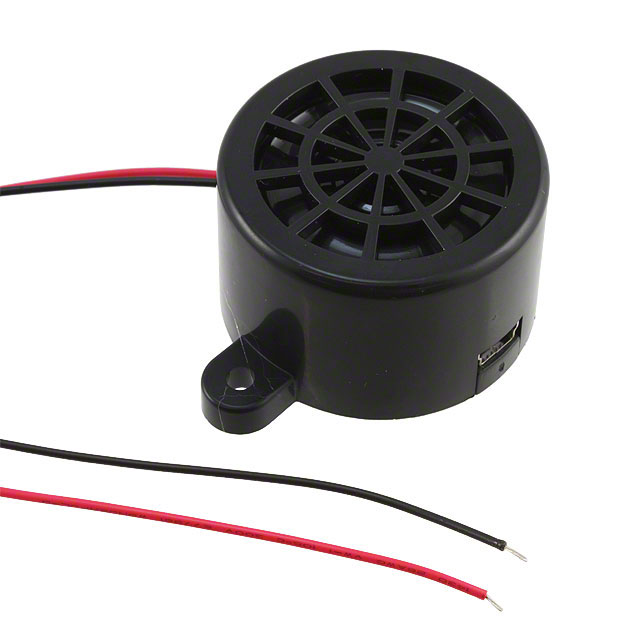

Description	BUZZER PIEZO 12V 42MM FLANGE
Detailed Description	Buzzers Indicator, Internally Driven Piezo 12 V 350mA 3.05kHz 100dB @ 12V, 10cm Panel Mount, Flange Wire Leads

Category		Audio Products Alarms, Buzzers, and Sirens
Manufacturer		PUI Audio, Inc.
Series		API
Packaging		Bulk
Part Status		Obsolete
Size / Dimension		1.654" Dia (42.00mm)
Mounting Type		Panel Mount, Flange
Frequency		3.05kHz
Operating Temperature		-20°C ~ 60°C
Sound Pressure Level (SPL)		100dB @ 12V, 10cm
Duration		Variable
Current - Supply		350mA
Input Type		DC
Operating Mode		Programmable, USB
Voltage Range		7 ~ 24V
Technology		Piezo
Termination		Wire Leads
Port Location		Top
Driver Circuitry		Indicator, Internally Driven
Height - Seated (Max)		1.004" (25.50mm)
Voltage - Rated		12 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8531.80.9041
Moisture Sensitivity Level (MSL)		1 (Unlimited)

This product is no longer manufactured.
