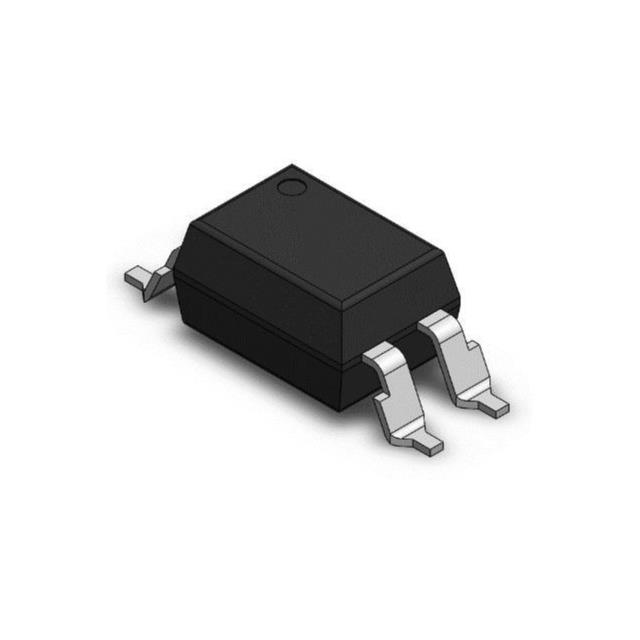

APC-817D1-SL _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	APC-817D1-SL
Manufacturer	American Bright
Other Part Numbers	2007-APC-817D1-SLCT-ND 2007-APC-817D1-SLDKR-ND 2007-APC-817D1-SLTR-ND 754-APC-817D1-SLCT-ND 754-APC-817D1-SL 2007-APC-817D1-SLCT 754-APC-817D1-SLCT 754-APC-817D1-SLCTINACTIVE-ND 754-APC-817D1-SLDKR 754-APC-817D1-SLDKRINACTIVE 754-APC-817D1-SLDKRINACTIVE-ND 2007-APC-817D1-SLDKR 2007-APC-817D1-SLTR 2007-APC-817D1-SL 754-APC-817D1-SLDKR-ND 2007-APC-817D1-SL-ND 754-APC-817D1-SLCTINACTIVE 754-APC-817D1-SL-ND
Description	OPTOISOLATOR 5KV 1CH TRANS 4SMD
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		American Bright
Series		APC-817
Packaging		Cut Tape (CT) Tube
Part Status		Active
Package / Case		4-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 110°C
Voltage - Forward (Vf) (Typ)		1.24V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		300% @ 5mA
Vce Saturation (Max)		200mV
Current Transfer Ratio (Max)		600% @ 5mA
Supplier Device Package		4-SMD
Voltage - Output (Max)		35V
Rise / Fall Time (Typ)		3µs, 4µs
Number of Channels		1
Current - DC Forward (If) (Max)		60 mA

RESOURCE TYPE		LINK
Datasheets		APC-817D1-SL

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
