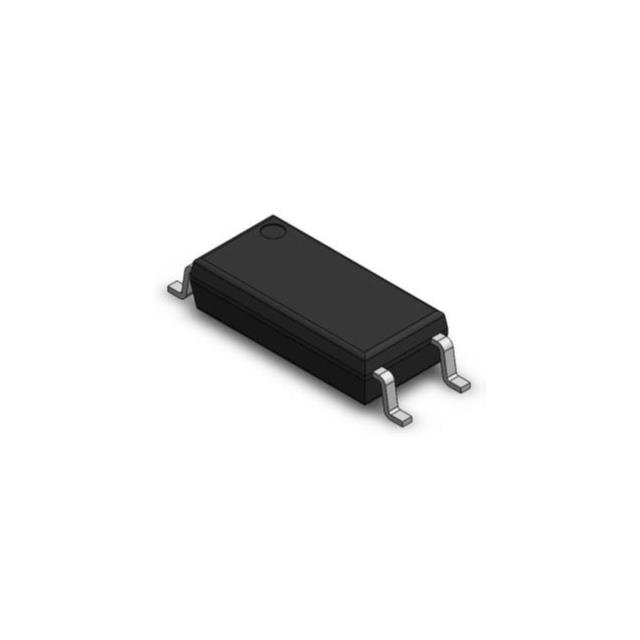

APC-1019 _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	APC-1019
Manufacturer	American Bright
Other Part Numbers	2007-APC-1019TR-ND 2007-APC-1019CT-ND 2007-APC-1019DKR-ND 754-APC-1019CT 2007-APC-1019CT 2007-APC-1019DKR 754-APC-1019CT-ND 754-APC-1019DKR 754-APC-1019TR-ND 754-APC-1019DKR-ND 754-APC-1019TR 2007-APC-1019TR
Description	LSOP4, DC INPUT, PHOTO TRANSISTO
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-LSOP
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		American Bright
Series		APC-101X
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 110°C
Voltage - Forward (Vf) (Typ)		1.45V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		200% @ 5mA
Vce Saturation (Max)		300mV
Current Transfer Ratio (Max)		400% @ 5mA
Supplier Device Package		4-LSOP
Voltage - Output (Max)		80V
Rise / Fall Time (Typ)		6µs, 8µs
Number of Channels		1
Current - DC Forward (If) (Max)		60 mA

RESOURCE TYPE		LINK
Datasheets		APC-1019

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
