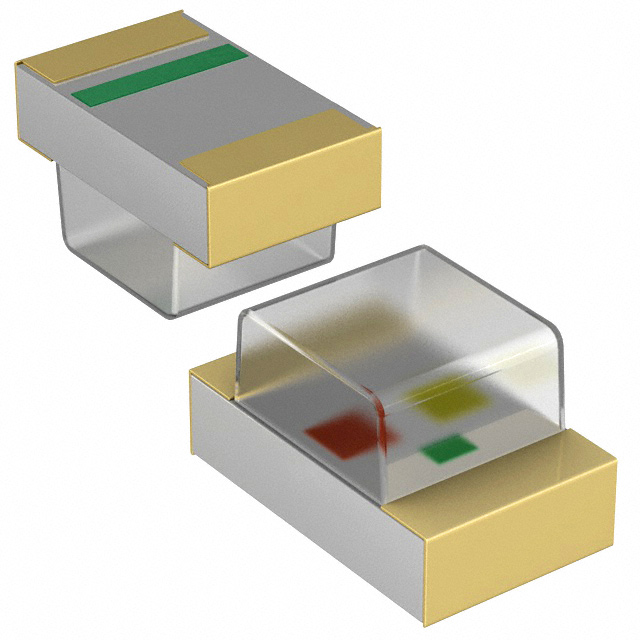

APB2012SURKSYKC

Part Number
APB2012SURKSYKC
Manufacturer Kingbright
Other Part Numbers
754-1846-2-ND
754-1846-1-ND
754-1846-6-ND
754-1846-1
754-1846-2
APB2012SURKSYKC-ND
754-1846-6
Description LED RED/YLW CLEAR CHIP SMD
Detailed Description Red, Yellow 630nm Red, 590nm Yellow LED Indication - Discrete 1.95V Red, 2V Yellow 0805 (2012 Metric)

Product Attributes

Category
Manufacturer Kingbright
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Obsolete
Package / Case 0805 (2012 Metric)
Color Red, Yellow
Size / Dimension 2.00mm L x 1.25mm W
Mounting Type Surface Mount
Millicandela Rating 80mcd Red, 120mcd Yellow
Configuration Bidirectional
Voltage - Forward (Vf) (Typ) 1.95V Red, 2V Yellow
Lens Color Colorless
Current - Test 20mA Red, 20mA Yellow
Viewing Angle 150°
Height (Max) 1.10mm
Wavelength - Peak 645nm Red, 590nm Yellow
Wavelength - Dominant 630nm Red, 590nm Yellow
Supplier Device Package Chip LED
Lens Transparency Clear
Lens Style Rectangle with Flat Top
Lens Size 1.30mm x 1.25mm

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
