AP7583Q-50FDZW-7 _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	AP7583Q-50FDZW-7
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	31-AP7583Q-50FDZW-7TR-ND 31-AP7583Q-50FDZW-7CT-ND 31-AP7583Q-50FDZW-7DKR-ND 31-AP7583Q-50FDZW-7CT 31-AP7583Q-50FDZW-7TR 31-AP7583Q-50FDZW-7DKR
Description	LDO CMOS LOWCURR W-DFN2020-6 T&R
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 300mA W-DFN2020-6 (SWP) (Type A1)
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

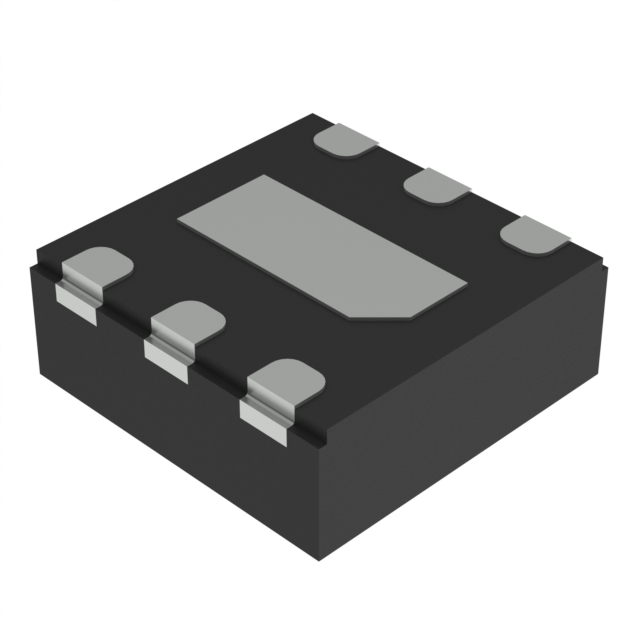

Package / Case		6-WDFN Exposed Pad
Output Type		Fixed
Mounting Type		Surface Mount, Wettable Flank
Current - Output		300mA
Operating Temperature		-40°C ~ 125°C (TA)
Output Configuration		Positive
Current - Quiescent (Iq)		4 µA
Voltage - Input (Max)		42V
Number of Regulators		1
Supplier Device Package		W-DFN2020-6 (SWP) (Type A1)
Voltage - Output (Min/Fixed)		5V
Control Features		Current Limit, Enable, Power Good
Grade		Automotive
PSRR		70dB (100Hz)
Voltage Dropout (Max)		0.5V @ 300mA
Protection Features		Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Qualification		AEC-Q100

RESOURCE TYPE		LINK
Datasheets		AP7583Q-50FDZW-7

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
