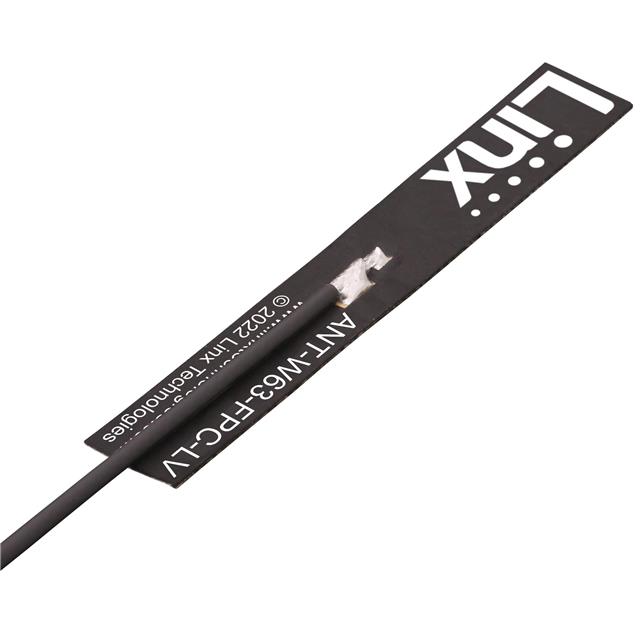

ANT-W63-FPC-LV50UF

ANT-W63-FPC-LV50UF

Part Number	ANT-W63-FPC-LV50UF
Manufacturer	TE Connectivity Linx
Other Part Numbers	343-ANT-W63-FPC-LV50UF-ND L9000202-01 343-ANT-W63-FPC-LV50UF
Description	ANT WIFI6 FPC 45X7 50MM UFL
Detailed Description	2.45GHz, 5.522GHz, 6.537GHz 802.11b/g, Bluetooth, Wi-Fi, WLAN, Zigbee™ Flat Patch RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz 4.8dBi, 6.3dBi, 7.4dBi MHF1, U.FL Adhesive
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		TE Connectivity Linx
Series		ANT-W63-FPC-LV
Packaging		Bag
Part Status		Active
Features		Cable - 50mm
Mounting Type		Adhesive
Frequency Range		2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz
Applications		802.11b/g, Bluetooth, Wi-Fi, WLAN, Zigbee™
Gain		4.8dBi, 6.3dBi, 7.4dBi
Termination		MHF1, U.FL
Number of Bands		3
VSWR		1.5, 1.6
Antenna Type		Flat Patch
Height (Max)		0.004" (0.10mm)
Frequency Group		Wide Band
Frequency (Center/Band)		2.45GHz, 5.522GHz, 6.537GHz
RF Family/Standard		802.15.4, Bluetooth, WiFi
Power - Max		2 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ANT-W63-FPC-LV50UF

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
