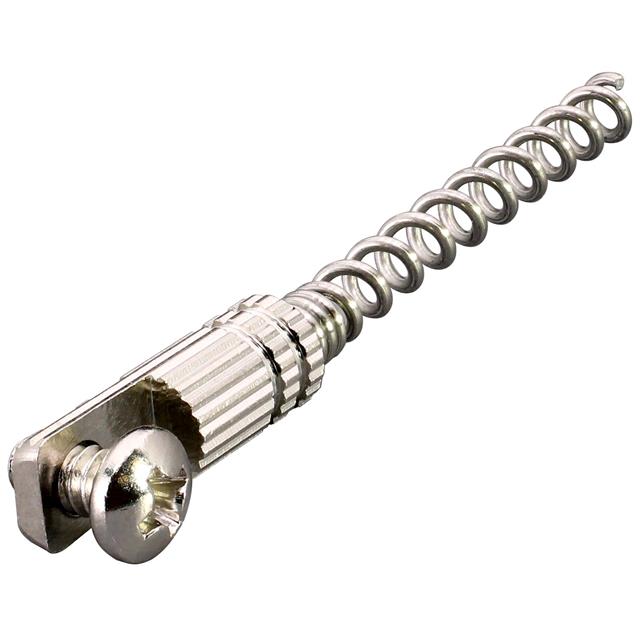

ANT-2.4-PW-LPN

ANT-2.4-PW-LPN

Part Number	ANT-2.4-PW-LPN
Manufacturer	TE Connectivity Linx
Other Part Numbers	343-ANT-2.4-PW-LPN-ND 343-ANT-2.4-PW-LPN L9000099-01
Description	ANT 2.4GHZ HELICAL SCREW MOUNT
Detailed Description	2.45GHz 802.11, Bluetooth, ISM, U-NII, Wi-Fi, WLAN, Zigbee™ Helical RF Antenna 2.4GHz ~ 2.5GHz 4.5dBi Solder Screw Mount
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		TE Connectivity Linx
Series		ANT-2.4-PW-LPN
Packaging		Tray
Part Status		Active
Mounting Type		Screw Mount
Frequency Range		2.4GHz ~ 2.5GHz
Applications		802.11, Bluetooth, ISM, U-NII, Wi-Fi, WLAN, Zigbee™
Gain		4.5dBi
Termination		Solder
Number of Bands		1
VSWR		2
Antenna Type		Helical
Height (Max)		1.846" (46.90mm)
Frequency Group		UHF (2GHz ~ 3GHz)
Frequency (Center/Band)		2.45GHz
RF Family/Standard		802.15.4, Bluetooth, General ISM, WiFi
Power - Max		15 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ANT-2.4-PW-LPN

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant

In Stock: 1080

Can ship immediately.
