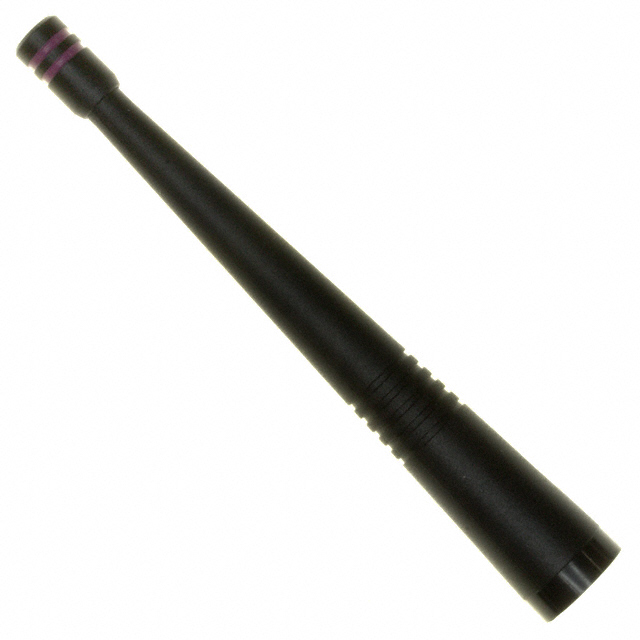

ANT-2.4-CW-QW-SMA

ANT-2.4-CW-QW-SMA

Part Number	ANT-2.4-CW-QW-SMA
Manufacturer	TE Connectivity Linx
Other Part Numbers	ANT-2.4-CW-QW-SMA-ND ANT24CWQWSMA L9000024-01
Description	RF ANT 2.4GHZ WHIP STR SMA MALE
Detailed Description	2.3GHz, 2.4GHz, 2.5GHz, 2.6GHz Bluetooth, Thread, Wi-Fi, Zigbee™ Whip, Straight RF Antenna 2.35GHz ~ 2.6GHz 1.1dBi SMA Male Connector Mount
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		TE Connectivity Linx
Series		CW
Packaging		Bulk
Part Status		Active
Mounting Type		Connector Mount
Frequency Range		2.35GHz ~ 2.6GHz
Applications		Bluetooth, Thread, Wi-Fi, Zigbee™
Gain		1.1dBi
Termination		SMA Male
Number of Bands		1
VSWR		1.9
Antenna Type		Whip, Straight
Height (Max)		4.134" (105.00mm)
Frequency Group		UHF (2GHz ~ 3GHz)
Frequency (Center/Band)		2.3GHz, 2.4GHz, 2.5GHz, 2.6GHz
RF Family/Standard		802.15.4, Bluetooth, WiFi

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ANT-2.4-CW-QW-SMA

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

In Stock: 1739

Can ship immediately.
