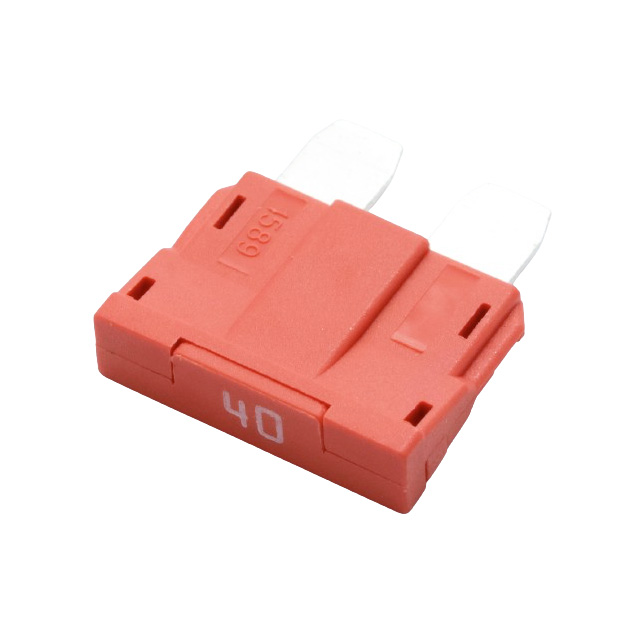

ANR80-UL-40A

Part Number
ANR80-UL-40A
Manufacturer OptiFuse
Other Part Numbers
2298-ANR80-UL-40A-ND
2298-ANR80-UL-40A
Description FUSE AUTO 40A 80VDC BLADE ATO
Detailed Description 40 A AC 80 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
Datasheet Datasheet

Product Attributes

Category
Manufacturer OptiFuse
Series
ANR80-UL
Packaging
Bulk
Part Status Active
Package / Case Blade, ATO/ATC
Color Orange
Size / Dimension 0.748" L x 0.197" W x 0.531" H (19.00mm x 5.00mm x 13.50mm)
Fuse Type Automotive
Mounting Type Requires Holder
Response Time Fast Blow
Approval Agency cURus, UL 248
DC Cold Resistance 0.00125 Ohms
Breaking Capacity @ Rated Voltage 1kA
Current Rating (Amps) 40 A
Voltage Rating - DC 80 V
Melting I²t 3200

Documents & Media

RESOURCE TYPE LINK
Datasheets ANR80-UL-40A

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8535.10.0040
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
