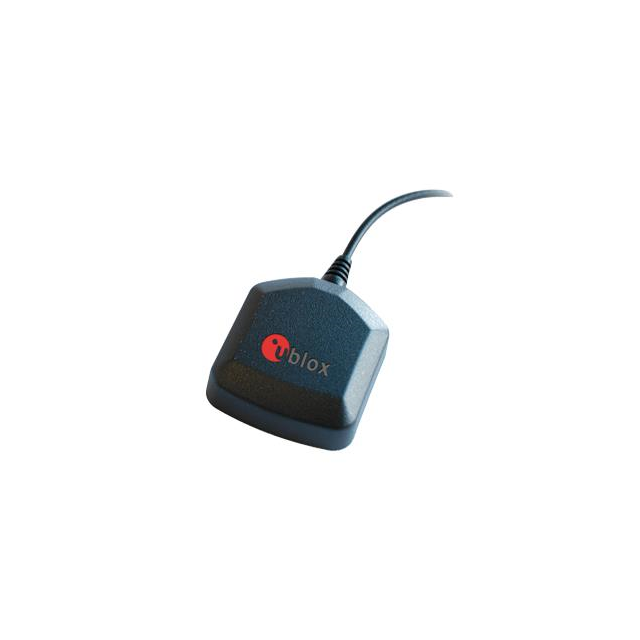

ANN-MS-0-005-0

ANN-MS-0-005-0

Part Number	ANN-MS-0-005-0
Manufacturer	u-blox
Other Part Numbers	672-ANN-MS-0-005-0-ND 672-ANN-MS-0-ND 672-ANN-MS-0-005-0 672-ANN-MS-0 672-1106-ND 672-1106 ANN-MS-0-005-0 ANN-MS-0
Description	RF ANT GPS 1.572GHZ-1.578GHZ
Detailed Description	1.575GHz GPS Module RF Antenna 1.572GHz ~ 1.578GHz 29dB SMA Magnetic
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		u-blox
Series		ANN-MS
Packaging		Box
Part Status		Active
Features		Cable - 5m, LNA
Mounting Type		Magnetic
Frequency Range		1.572GHz ~ 1.578GHz
Applications		GPS
Gain		29dB
Termination		SMA
Number of Bands		1
VSWR		2
Antenna Type		Module
Height (Max)		0.512" (13.00mm)
Frequency Group		UHF (1GHz ~ 2GHz)
Frequency (Center/Band)		1.575GHz
RF Family/Standard		Navigation

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ANN-MS-0-005-0
Datasheets		ANN-MS Summary
Datasheets		General Terms and Conditions of Sales of u-blox AG

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		7A994
HTSUS		8529.10.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
