Part Number |

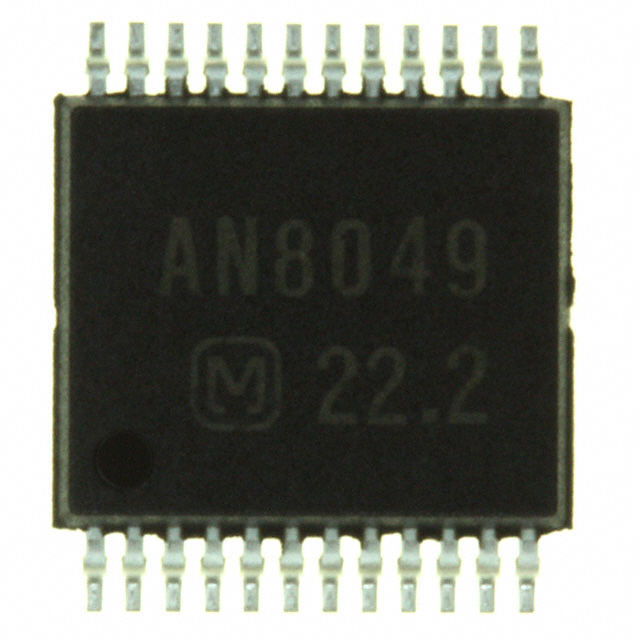

AN8049SH-E1
|
---|---|
Manufacturer | Panasonic Electronic Components |
Other Part Numbers |
AN8049SHE1TR-ND
AN8049SHE1TR
AN8049SHE1TR-NDR
AN8049SHE1CT
AN8049SHE1
AN8049SHE1CT-NDR
|
Description | IC REG CTRLR BUCK/BOOST 24SSOP |
Detailed Description | Buck, Boost Regulator Positive or Negative Output Step-Up/Step-Down DC-DC Controller IC 24-SSOP |
Category | ||
---|---|---|
Manufacturer | Panasonic Electronic Components | |
Series | ||
Packaging |
Tape & Reel (TR)
|
|
Part Status | Obsolete | |
Package / Case | 24-LFSOP (0.220", 5.50mm Width) | |
Output Type | Transistor Driver | |
Mounting Type | Surface Mount | |
Function | Step-Up/Step-Down | |
Operating Temperature | -30°C ~ 85°C (TA) | |
Output Configuration | Positive or Negative | |
Frequency - Switching | 20kHz ~ 1MHz | |
Topology | Buck, Boost | |
Voltage - Supply (Vcc/Vdd) | 1.8V ~ 14V | |
Supplier Device Package | 24-SSOP | |
Synchronous Rectifier | No | |
Control Features | Enable, Soft Start | |
Output Phases | 1 | |
Duty Cycle (Max) | 86% | |
Clock Sync | No | |
Number of Outputs | 3 |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | RoHS non-compliant |
