AN30185A-VL

Part Number
AN30185A-VL
Manufacturer Panasonic Electronic Components
Other Part Numbers
AN30185A-VLTR-ND
AN30185A-VLDKR
AN30185AVL
AN30185A-VLTR
AN30185A-VLCT
Description IC REG TRPL BUCK/LNR SYNC 24HQFN
Detailed Description PMIC - Voltage Regulators - Linear Switching 3 Output Step-Down (Buck) Synchronous (2), Linear (LDO) (1) 1.2MHz 24-HQFN (4x4)

Product Attributes

Category
Manufacturer Panasonic Electronic Components
Series
Packaging
Tape & Reel (TR)
Part Status Obsolete

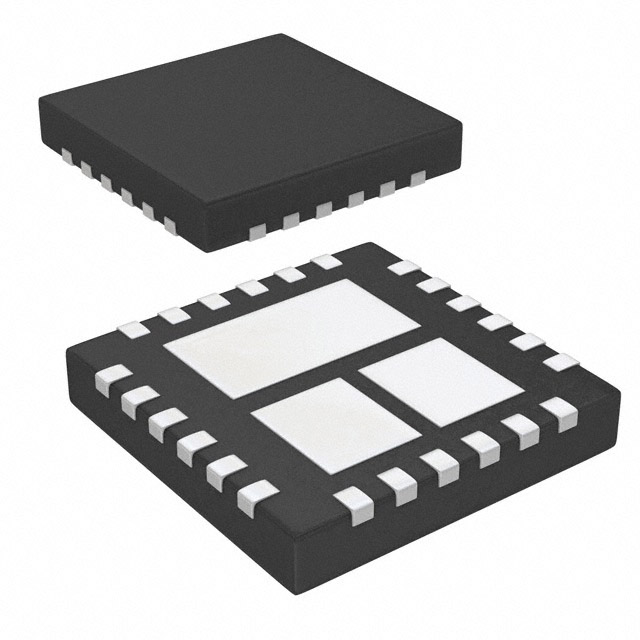

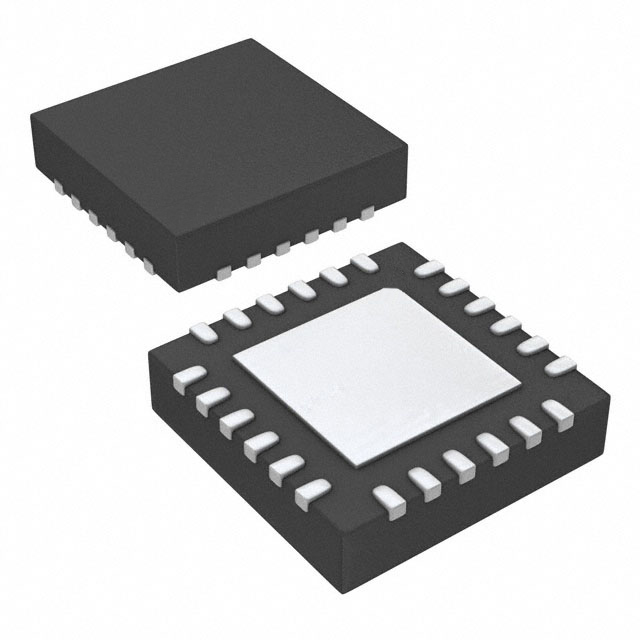

Package / Case 24-WFQFN Exposed Pad
Mounting Type Surface Mount
Operating Temperature -40°C ~ 85°C
Voltage - Supply 2.9V ~ 5.5V
Frequency - Switching 1.2MHz
Topology Step-Down (Buck) Synchronous (2), Linear (LDO) (1)
Supplier Device Package 24-HQFN (4x4)
Voltage/Current - Output 1 1V, 800mA
Voltage/Current - Output 2 1.8V, 800mA
Voltage/Current - Output 3 0.9V, 10mA
w/LED Driver No
w/Supervisor No
w/Sequencer No
Number of Outputs 3

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
RoHS Status RoHS Compliant

Obsolete

This product is no longer manufactured.
