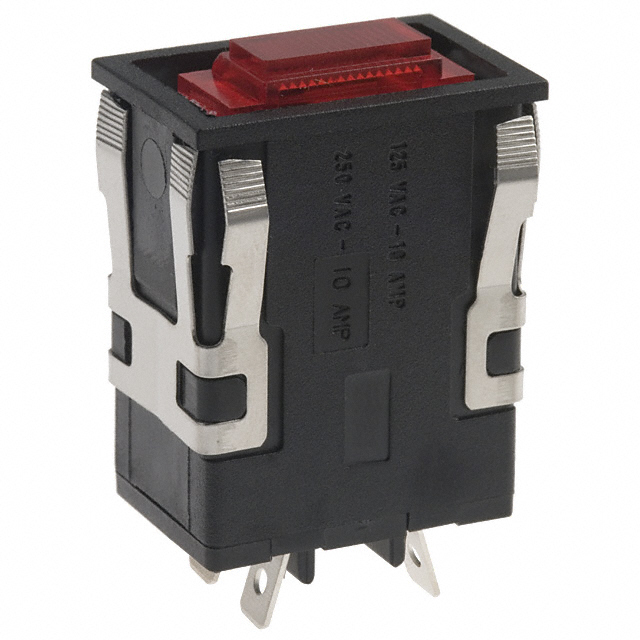

AML32FBB7AD

AML32FBB7AD

Part Number	AML32FBB7AD
Manufacturer	Honeywell Sensing and Productivity Solutions
Other Part Numbers	480-2235-ND 480-2235 2266-AML32FBB7AD
Description	SWITCH PUSH DPST-NO 10A 125V
Detailed Description	Pushbutton Switch DPST-NO (DM) Standard, Illuminated Panel Mount, Snap-In
Manufacturer Standard Lead Time	52 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Pushbutton Switches
Manufacturer		Honeywell Sensing and Productivity Solutions
Series		AML32
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		10A (AC/DC)
Mounting Type		Panel Mount, Snap-In
Circuit		DPST-NO (DM)
Type		Standard, Illuminated
Switch Function		Off-On
Termination Style		Solder, Quick Connect - 0.187" (4.7mm)
Illumination Type, Color		Neon, Red
Illumination Voltage (Nominal)		125 VAC
Actuator Type		Rectangular, Button (Not Included)
Panel Cutout Dimensions		Rectangular - 29.00mm x 19.00mm
Actuator Marking		No Marking
Voltage Rating - AC		125 V
Voltage Rating - DC		30 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Pushbutton Switches Line Guide
Datasheets		AML Series Product Brief

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9035
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 10

Can ship immediately.
