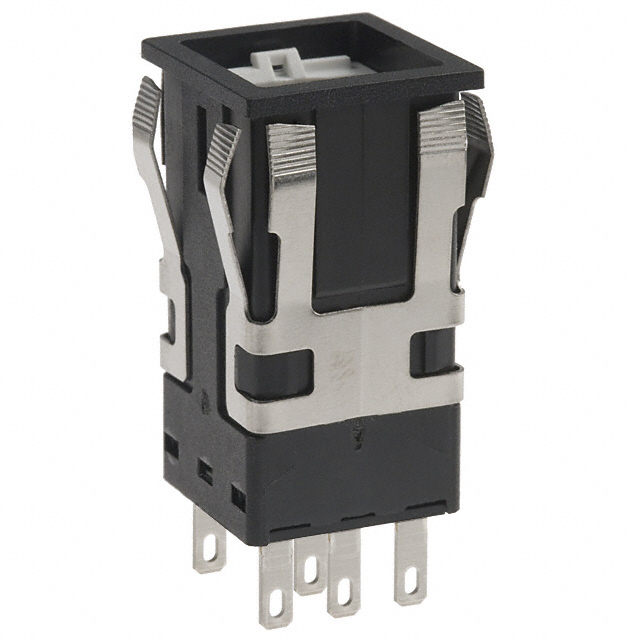

AML21CBA2AC

AML21CBA2AC

Part Number	AML21CBA2AC
Manufacturer	Honeywell Sensing and Productivity Solutions
Other Part Numbers	480-2222-ND 480-2222
Description	SWITCH PUSHBUTTON DPDT 3A 125V
Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
Manufacturer Standard Lead Time	52 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Pushbutton Switches
Manufacturer		Honeywell Sensing and Productivity Solutions
Series		AML21
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		3A (AC), 2A (DC)
Mounting Type		Panel Mount, Snap-In
Circuit		DPDT
Type		Standard, Illuminated
Switch Function		On-Mom
Termination Style		Solder, Quick Connect - 0.110" (2.8mm)
Illumination Type, Color		Incandescent
Actuator Type		Square, Button (Not Included)
Panel Cutout Dimensions		Square - 19.05mm x 19.05mm
Actuator Marking		No Marking
Voltage Rating - AC		125 V
Voltage Rating - DC		24 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AML21CBA2AC
Datasheets		Pushbutton Switches Line Guide
Datasheets		AML Series Product Brief

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 133

Can ship immediately.
