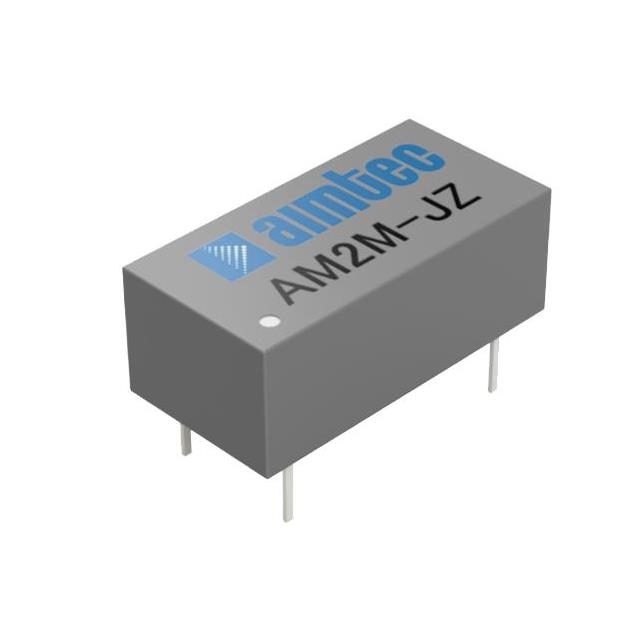

AM2M-1212DH30JZ _ DC DC Converters_Power Supplies

Part Number	AM2M-1212DH30JZ
Manufacturer	Aimtec
Other Part Numbers	5245-AM2M-1212DH30JZ-ND 2721-AM2M-1212DH30JZ 5245-AM2M-1212DH30JZ 2721-AM2M-1212DH30JZ-ND
Description	2W DC/DC Converter
Detailed Description	Isolated Module DC DC Converter 2 Output -12 ~ 12V -12V 83mA, 83mA 10.8V - 13.2V Input
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		Aimtec
Series
Packaging		Tube
Part Status		Active
Package / Case		14-DIP Module
Size / Dimension		0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 105°C
Applications		ITE (Commercial)
Voltage - Input (Max)		13.2V
Efficiency		83%
Current - Output (Max)		83mA, 83mA
Voltage - Input (Min)		10.8V
Voltage - Output 1		-12 ~ 12V
Voltage - Output 2		-12V
Power (Watts)		2 W
Number of Outputs		2
Voltage - Isolation		3 kV
Standard Number		62368-1

RESOURCE TYPE		LINK
Datasheets		AM2M-1212DH30JZ

ATTRIBUTE		DESCRIPTION
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH info available upon request
RoHS Status		ROHS3 Compliant
