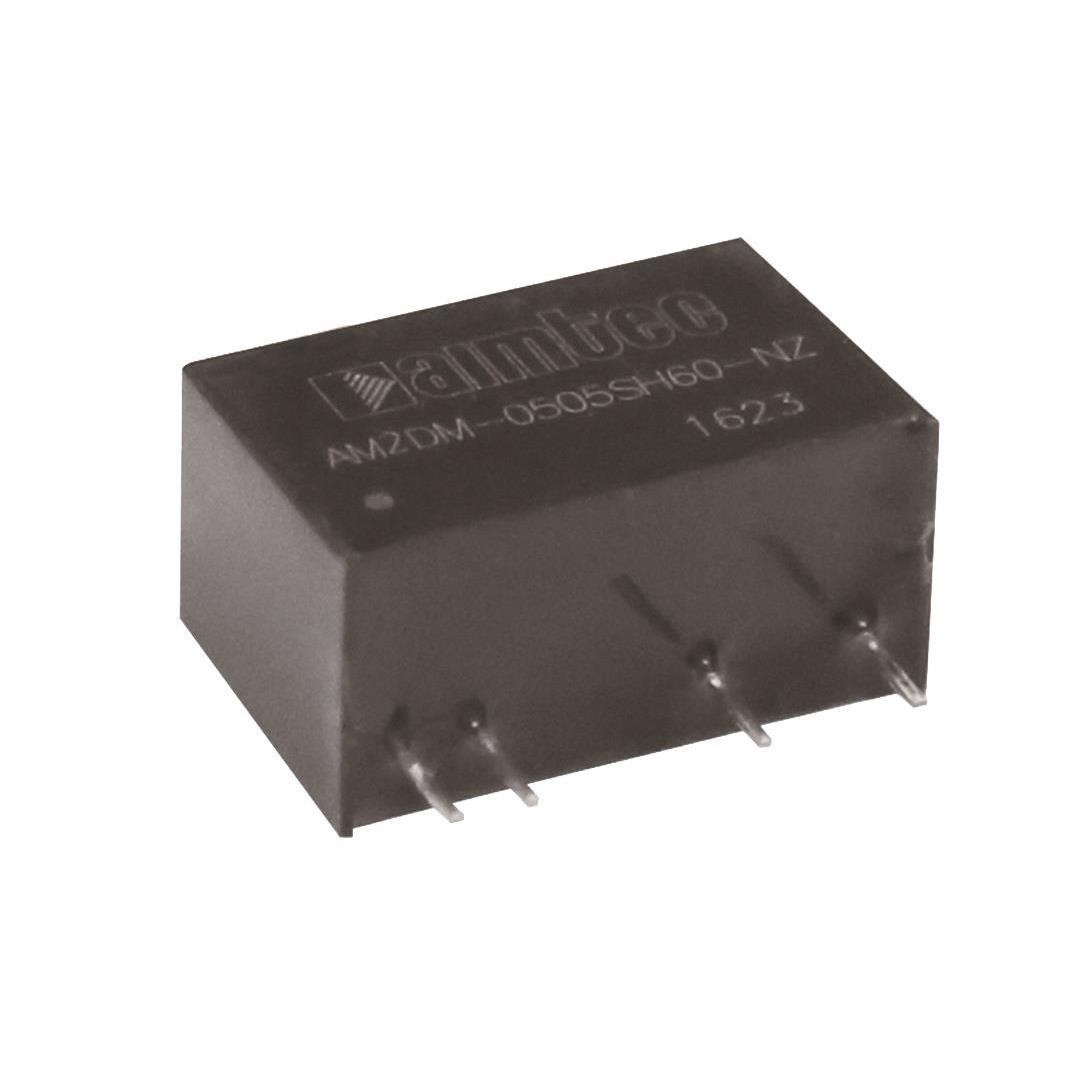

AM2DM-1209DH60-NZ _ DC DC Converters_Power Supplies

Part Number	AM2DM-1209DH60-NZ
Manufacturer	Aimtec
Other Part Numbers	2721-AM2DM-1209DH60-NZ-ND 2721-AM2DM-1209DH60-NZ
Description	DC DC CONVERTER +/-9V 2W
Detailed Description	Isolated Module DC DC Converter 2 Output -9 ~ 9V -9V 111mA, 111mA 10.8V - 13.2V Input
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		Aimtec
Series		AM2DM-NZ (2W)
Packaging		Tube
Part Status		Active
Package / Case		7-SIP Module
Size / Dimension		0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 85°C
Applications		Medical
Voltage - Input (Max)		13.2V
Approval Agency		CE, cURus
Efficiency		82%
Current - Output (Max)		111mA, 111mA
Voltage - Input (Min)		10.8V
Voltage - Output 1		-9 ~ 9V
Voltage - Output 2		-9V
Power (Watts)		2 W
Number of Outputs		2
Voltage - Isolation		6 kV

RESOURCE TYPE		LINK
Datasheets		AM2DM-1209DH60-NZ

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
