AM26S12/B2A

Part Number
AM26S12/B2A
Manufacturer Advanced Micro Devices
Other Part Numbers
2156-AM26S12/B2A-ND
AMDAMDAM26S12/B2A
2156-AM26S12/B2A
Description IC TXRX NON-INVERT 5.5V 20CLCC
Detailed Description Transceiver, Non-Inverting 1 Element 4 Bit per Element Open Collector Output 20-CLCC

Product Attributes

Category
Manufacturer Advanced Micro Devices
Series
Packaging
Bulk
Part Status Active

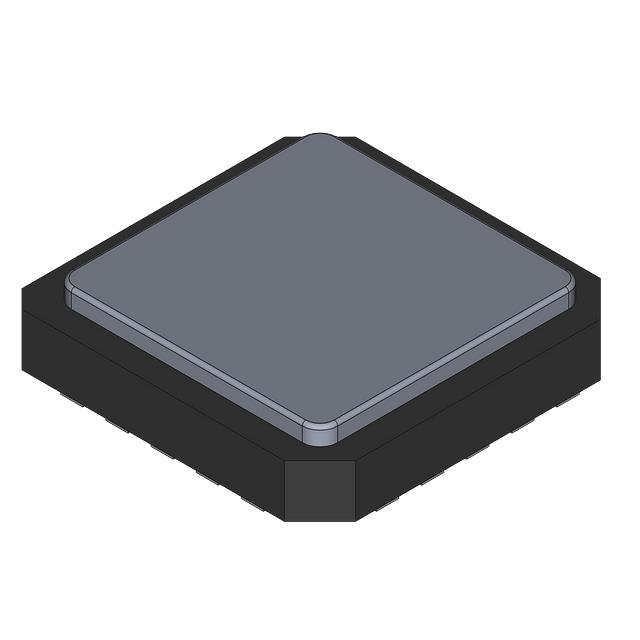

Package / Case 20-CLCC
Output Type Open Collector
Mounting Type Surface Mount
Number of Elements 1
Logic Type Transceiver, Non-Inverting
Operating Temperature -55°C ~ 125°C
Voltage - Supply 4.5V ~ 5.5V
Number of Bits per Element 4
Current - Output High, Low 800µA, 20mA
Supplier Device Package 20-CLCC

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status Vendor Undefined
RoHS Status RoHS non-compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
