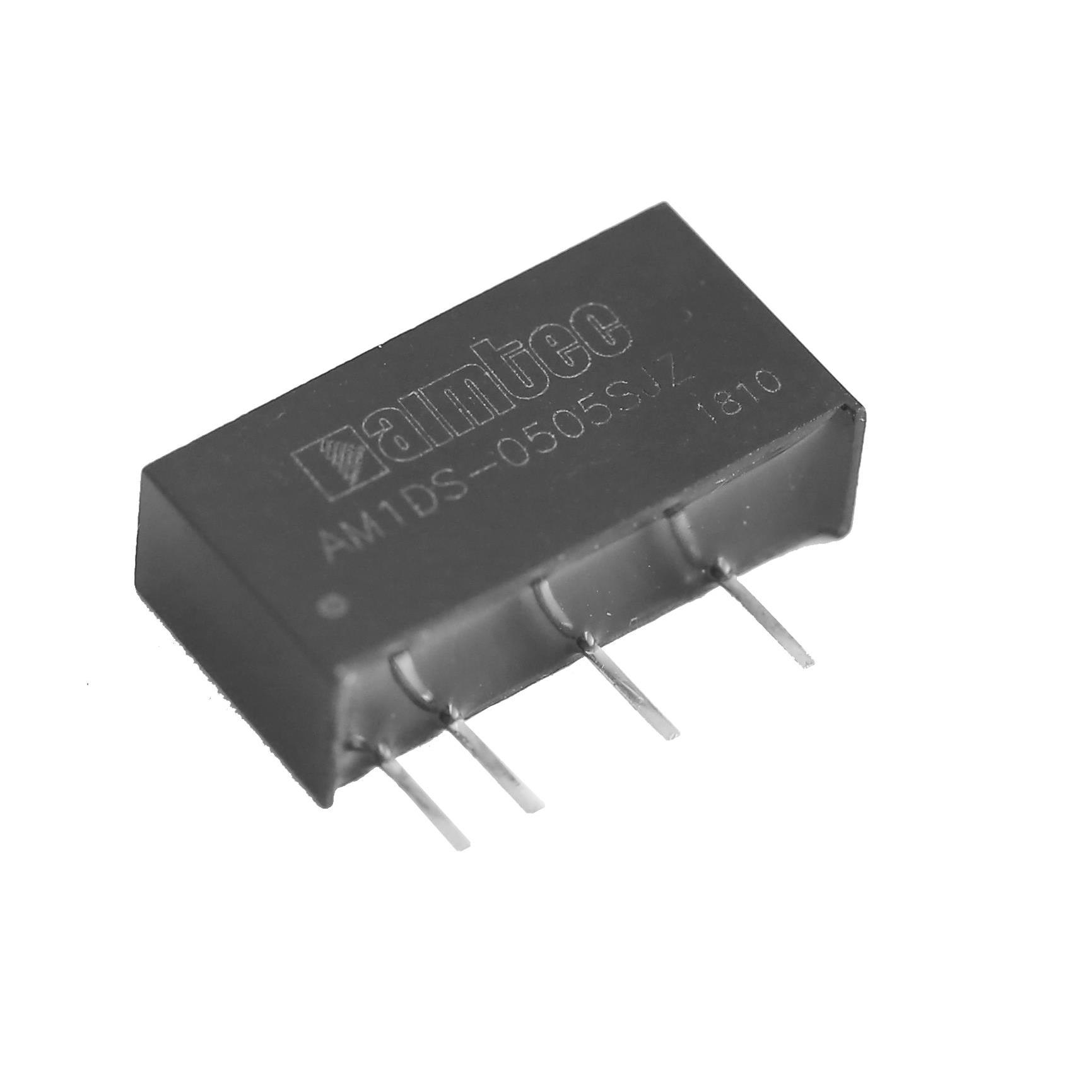

AM1DS-2405SH30JZ _ DC DC Converters_Power Supplies

Part Number	AM1DS-2405SH30JZ
Manufacturer	Aimtec
Other Part Numbers	5245-AM1DS-2405SH30JZ-ND 2721-AM1DS-2405SH30JZ-ND 2721-AM1DS-2405SH30JZ 5245-AM1DS-2405SH30JZ
Description	1W DC/DC Converter
Detailed Description	Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		Aimtec
Series
Packaging		Tube
Part Status		Active
Package / Case		7-SIP Module
Size / Dimension		0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 105°C
Applications		ITE (Commercial)
Voltage - Input (Max)		26.4V
Approval Agency		cURus
Efficiency		79%
Current - Output (Max)		200mA
Voltage - Input (Min)		21.6V
Voltage - Output 1		5V
Power (Watts)		1 W
Number of Outputs		1
Voltage - Isolation		3 kV
Standard Number		62368-1

RESOURCE TYPE		LINK
Datasheets		AM1DS-2405SH30JZ

ATTRIBUTE		DESCRIPTION
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH info available upon request
RoHS Status		ROHS3 Compliant
