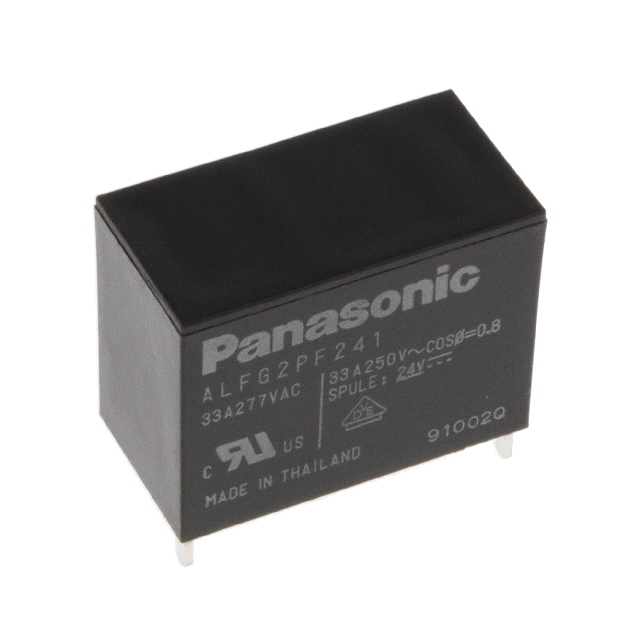

ALFG2PF241 _ Power Relays, Over 2 Amps_Relays

Part Number	ALFG2PF241
Manufacturer	Panasonic Electric Works
Other Part Numbers	255-5928-ND 255-5928 ALFG2PF241-ND
Description	RELAY GEN PURPOSE SPST 33A 24V
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Panasonic Electric Works
Series		ALFG
Packaging		Bulk
Part Status		Active
Mounting Type		Through Hole
Coil Voltage		24VDC
Operating Temperature		-40°C ~ 60°C
Termination Style		PC Pin
Approval Agency		cURus, VDE
Relay Type		General Purpose
Coil Current		58.6 mA
Coil Type		Non Latching
Contact Material		Silver Tin Oxide (AgSnO)
Contact Form		SPST-NO (1 Form A)
Contact Rating (Current)		33 A
Switching Voltage		250VAC - Max
Must Release Voltage		2.4 VDC
Must Operate Voltage		16.8 VDC
Operate Time		20 ms
Release Time		10 ms
Coil Insulation		Class F
Load - Max Switching		8250VA

RESOURCE TYPE		LINK
Datasheets		Mult Dev Label Chgs 20/Sep/2019

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
